TEIN FLEX Z COILOVER SUSPENSION - SUBARU IMPREZA WRX GDA GDB GD9 PCD 5X100

-10%

$1,827.00

$2,030.00

Tax Included

Brand: TEIN

Availability: In Stock

SKU: VSS28-C1SA4

Qty:

Tags: 9-2X , GD9 , GDA , GDA(A/B) , GDA(C-) , GDB , GDB(A/B) , GDB(C/D) , GDF , GGA , GGE , Impreza , SAAB , Subaru , suspension , tein

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

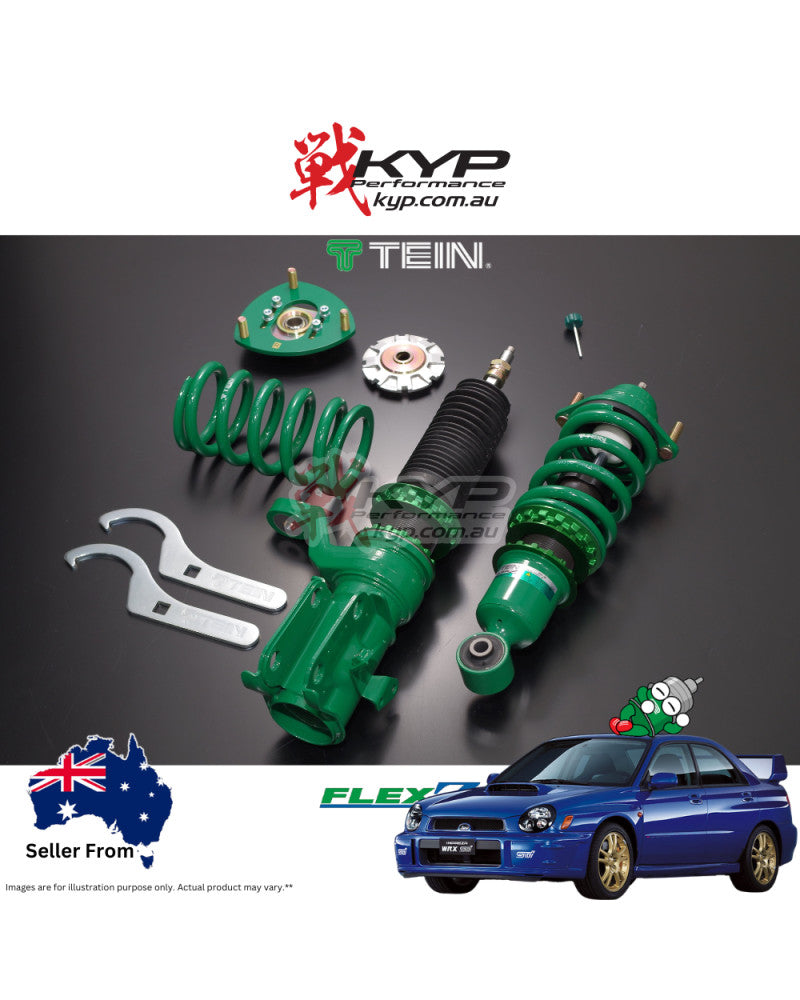

TEIN STREET COILOVER KIT

Part Number: VSS28-C1SA4 | RRP: AUD $2,030.00 (inc. GST) | Stock: In Stock

⚠️ IMPORTANT NOTES:
• REAR: Reinforced rubber mount included
• Pay extra attention to the ABS harness tension at full bump when adjusting rear case length
• Avoid setting rear spring seat below 160mm to prevent interference with tire

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	VSS28-C1SA4
RRP (inc. GST)	AUD $2,030.00
STOCK	✅ In Stock

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Camber Adjust (F) / R/U (R)
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	336 lbs/in / 6.0 kgf/mm (6K)
Free Length	200 mm
I.D. (Inner Diameter)	Φ70 mm

REAR SPRING

Spring Rate	280 lbs/in / 5.0 kgf/mm (5K)
Free Length	225 mm
I.D. (Inner Diameter)	Φ70 mm

📋 VEHICLE FITMENT GUIDE

MODEL	MARKET	YEAR	CHASSIS	GRADE	DROP (F/R)	ADJ RANGE (F)	ADJ RANGE (R)
IMPREZA WRX	UK	2000-2002	GDA	WRX	-50mm / -35mm	-117 to -5	-80 to +23
IMPREZA WRX	USA	2002-2003	GDA	WRX (4DR)	-65mm / -35mm	-117 to -5	-80 to +23
IMPREZA WRX	UK	2003-2007	GDA	WRX	-50mm / -35mm	-117 to -5	-80 to +23
IMPREZA WRX	USA	2004-2007	GDA	WRX (4DR)	-65mm / -35mm	-117 to -5	-80 to +23
IMPREZA WRX NB	Japan	2000.08-2007.06	GDA(A/B-C-)	WRX NB	-50mm / -35mm	-111 to -17	-105 to +23
IMPREZA WRX STI	UK	2000-2007	GDB	WRX STI (P.C.D.=100)	-45mm / -25mm	-116 to -18	-80 to +33
IMPREZA WRX STI	Japan	2000.10-2004.06	GDB(A/B-D)	WRX STI (P.C.D.=100)	-45mm / -25mm	-116 to -22	-95 to +33
IMPREZA WRX STI	USA	2004	GDF	WRX STI (P.C.D.=100)	-45mm / -25mm	-116 to -18	-80 to +33
IMPREZA WRX NA	Japan	2000.08-2002.11	GD9	WRX NA	-45mm / -20mm	-110 to -16	-90 to +38
IMPREZA WRX	USA	2002-2003	GGA	WRX (5DR)	-50mm / -30mm	-117 to -5	-80 to +25
IMPREZA WRX	USA	2004-2007	GGA	WRX (5DR)	-55mm / -40mm	-117 to -5	-80 to +15
SAAB 9-2X	USA	2005-2007	GGA/GGE	AERO	-45mm / -40mm	-116 to -18	-80 to +15

📝 IMPORTANT NOTES:
• FRONT: Camber adjustable upper mounts
• REAR: Reinforced Upper (R/U) mounts with reinforced rubber mount
• Spring rates: Front 6K (336 lbs/in) / Rear 5K (280 lbs/in)
• Spring I.D.: Φ70 mm (both front and rear)
• Avoid setting rear spring seat below 160mm to prevent interference with tire
• Pay extra attention to ABS harness tension at full bump when adjusting rear case length
• Compatible with Subaru Impreza GD/GG (2000-2007) and Saab 9-2X
• Japan, UK, and USA market specifications available

* Specifications are subject to change without notice. Please verify fitment before purchase.
