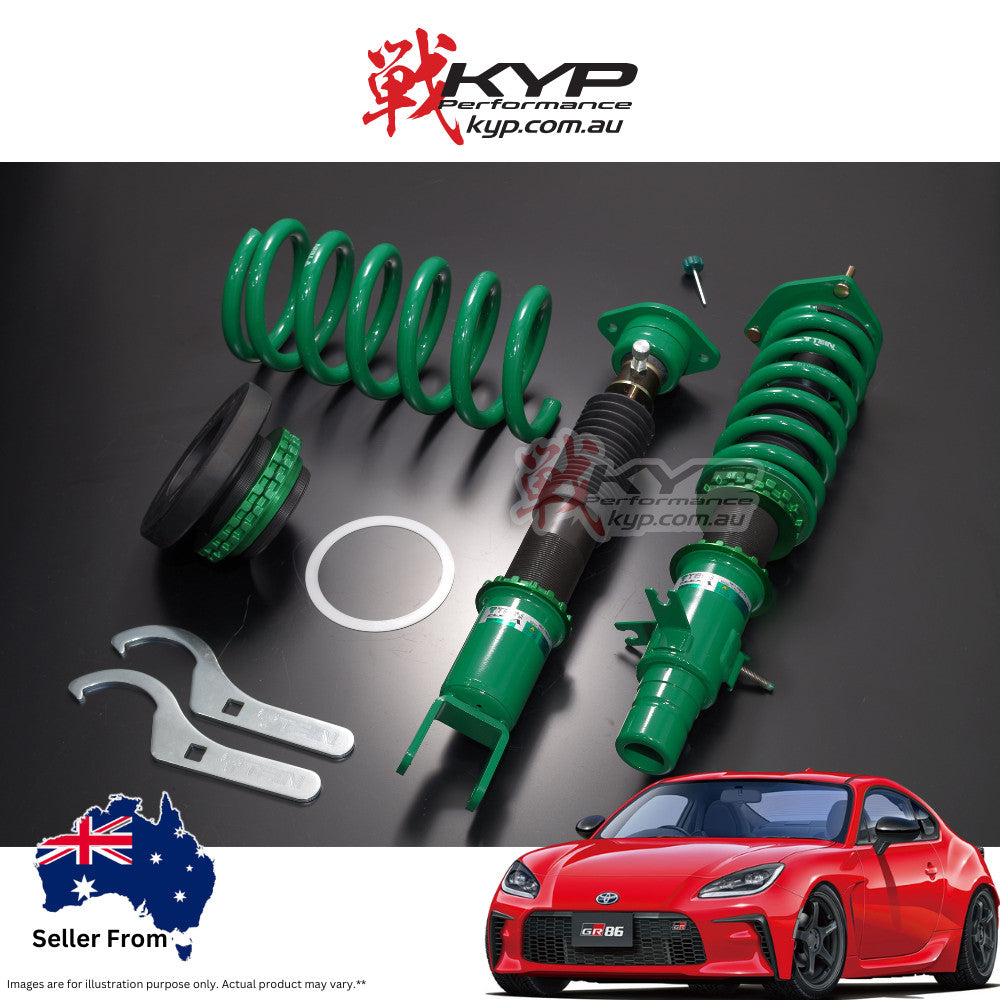

Name: TEIN Flex Z Coilover Kit – COILOVER Suspension - SUBARU BRZ ZC6 ZD8 TOYOTA 86 ZN6 GR86 ZN8 VSTD8-C1SS4
Brand: TEIN
SKU: VSTD8-C1SS4
Price: 2056.5 AUD
Availability: InStock

08 9470 3828 | info@kyp.com.au

TEIN Flex Z Coilover Kit – COILOVER Suspension - SUBARU BRZ ZC6 ZD8 TOYOTA 86 ZN6 GR86 ZN8 VSTD8-C1SS4

-10%

$2,056.50

$2,285.00

Tax Included

Brand: TEIN

Availability: Back Order

SKU: VSTD8-C1SS4

Qty:

Tags: 86 , backorder , brz , coilover , free-shipping , subaru , tein , toyota

🚚 Free Shipping (Australia)

This product ships free Australia-wide.

Description

Description

TEIN STREET COILOVER KIT

Part Number: VSTD8-C1SS4 | RRP: AUD $1,860.00 (inc. GST) | Stock: Please ask

⚠️ IMPORTANT NOTES:
• REAR: Interior needs to be cut or removed to avoid interference
• Germany (DEU): TÜV part certificate approval (axle loads: FT 876kg / RR 943kg)
• Germany (DEU) & USA: Front motor needs to be installed onto shock absorber and checked for proper operation before installing to the vehicle

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	VSTD8-C1SS4
RRP (inc. GST)	AUD $1,860.00
STOCK	Please ask

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Camber Adjust (F) / R/U (R)
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	336 lbs/in / 6.0 kgf/mm (6K)
Free Length	150 mm
I.D. (Inner Diameter)	Φ70 mm

REAR SPRING

Spring Rate	336 lbs/in / 6.0 kgf/mm (6K)
Free Length	175 mm
I.D. (Inner Diameter)	Φ70 mm

📋 VEHICLE FITMENT GUIDE

MAKE	MODEL	MARKET	YEAR	CHASSIS	GRADE	DROP (F/R)	ADJ RANGE (F)	ADJ RANGE (R)
TOYOTA	GT86	Germany	2012-2021	ZN	—	-45mm / -40mm	—	—
TOYOTA	GT86	UK	2012-2016	ZN#	—	-25mm / -25mm	-67 to -1	-93 to +9
TOYOTA	GT86	UK	2017-2021	ZN#	—	-30mm / -30mm	-65 to -1	-93 to +11
TOYOTA	86	USA	2017-2021	ZNA	—	-30mm / -30mm	-68 to -6	-76 to +11
TOYOTA	86	Japan	2012.04-2016.07	ZN6	GT LIMITED, GT, G, RC	-25mm / -25mm	-67 to -1	-93 to +9
TOYOTA	86	Japan	2016.08-2020.11	ZN6	GT LIMITED, GT, G	-30mm / -30mm	-65 to -1	-93 to +11
TOYOTA	86 GR SPORT	Japan	2018.07-2020.06	ZN6	GR SPORT	-30mm / -30mm	-60 to +3	-83 to +23
SCION	FR-S	USA	2012-2016	ZNA	2DR/4CYL	-30mm / -30mm	-68 to -6	-76 to +11
SUBARU	BRZ	Germany	2012-2021	ZC	—	-45mm / -40mm	—	—
SUBARU	BRZ	UK	2012-2016	ZC#	—	-30mm / -25mm	-67 to -1	-82 to +16
SUBARU	BRZ	UK	2017-2021	ZC#	—	-30mm / -25mm	-65 to -1	-88 to +16
SUBARU	BRZ	USA	2013-2021	ZCA	—	-30mm / -30mm	-68 to -6	-76 to +11
SUBARU	BRZ	Japan	2012.03-2016.07	ZC6	RA, S, R	-30mm / -25mm	-67 to -1	-82 to +16
SUBARU	BRZ	Japan	2016.08-2020.11	ZC6	S, R	-30mm / -25mm	-65 to -1	-88 to +16

📝 IMPORTANT NOTES:
• FRONT: Camber adjustable upper mounts
• REAR: Reinforced Upper (R/U) mounts
• REAR: Interior needs to be cut or removed to avoid interference
• Spring rates: Front 6K (336 lbs/in) / Rear 6K (336 lbs/in)
• Spring I.D.: Φ70 mm (both front and rear)
• Germany (DEU): TÜV part certificate approval (axle loads: FT 876kg / RR 943kg)
• Germany (DEU) & USA: Front motor needs to be installed onto shock absorber and checked for proper operation before installing to the vehicle
• Compatible with Toyota 86/GT86, Scion FR-S, and Subaru BRZ (ZN6/ZC6)
• Japan, UK, USA, and Germany market specifications available

* Specifications are subject to change without notice. Please verify fitment before purchase.
