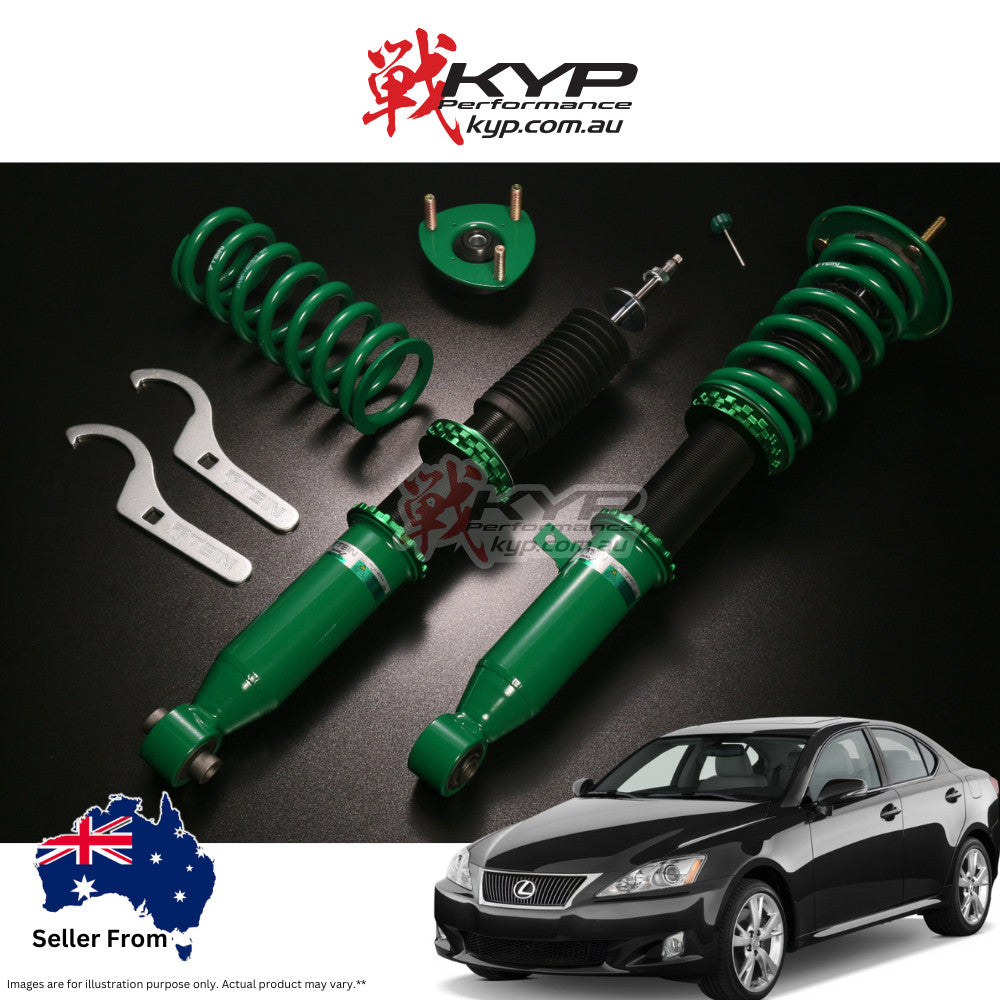

TEIN FLEX Z COILOVER SUSPENSION - LEXUS IS250 06-13/IS350 05-13

-10%

$1,399.50

$1,555.00

Tax Included

Brand: TEIN

Availability: In Stock

SKU: VSQ22-C1SA3

Qty:

Tags: is350 , lexus , suspension , tein

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

TEIN STREET COILOVER KIT

Part Number: VSQ22-C1SA3 | RRP: AUD $1,555.00 (inc. GST) | Stock: In Stock

⚠️ IMPORTANT NOTES:
• Due to individual differences, inner fender may need to be cut if it interferes with the spring
• Mark X G'S: Not tested on post-facelift model (Nov 2016 or later)
• GRX121 (300G) data applies to Low Down model (approx -15mm)

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	VSQ22-C1SA3
RRP (inc. GST)	AUD $1,555.00
STOCK	✅ In Stock

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Pillowball Upper (F/R)
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	448 lbs/in / 8.0 kgf/mm (8K)
Free Length	200 mm
I.D. (Inner Diameter)	Φ70 mm

REAR SPRING

Spring Rate	448 lbs/in / 8.0 kgf/mm (8K)
Free Length	225 mm
I.D. (Inner Diameter)	Φ65 mm

📏 RIDE HEIGHT & ALIGNMENT SPECIFICATIONS

FRONT

Ride Height Change	-25mm to -50mm (varies by chassis)
Adjustable Range (Typical)	-102mm to +16mm
Upper Mount	Pillowball Upper (R/U)

REAR

Ride Height Change	-10mm to -40mm (varies by chassis)
Adjustable Range (Typical)	-141mm to +28mm
Upper Mount	Pillowball Upper (R/U)

📋 VEHICLE FITMENT GUIDE (Partial List)

MODEL	MARKET	YEAR	CHASSIS	GRADE / NOTES
MARK X	Japan	2004.11-2009.09	GRX120	2.5L 250G
MARK X	Japan	2004.11-2009.09	GRX121	3.0L 300G (Low Down model)
MARK X	Japan	2009.10-2019.12	GRX130/GRX133	2.5L / 3.5L
MARK X G'S	Japan	2012.10-2016.10	GRX130	2.5L (Not tested post Nov 2016)
REIZ	China	2004-2009	GRX122L	4DR
LEXUS IS F	Japan/USA	2007-2014	USE20/USE20L	5.0L V8
LEXUS IS250	JPN/GBR/USA/CHN	2005-2013	GSE20/GSE20L/GSE20R	2.5L
LEXUS IS350	Japan/USA	2005-2013	GSE21/GSE21L	3.5L

📝 IMPORTANT NOTES:
• UPPER MOUNTS: Pillowball Upper (R/U) both front and rear
• Spring rates: Front 8K (448 lbs/in) / Rear 8K (448 lbs/in) — Balanced spring rates for predictable handling
• Front Spring I.D.: Φ70 mm | Rear Spring I.D.: Φ65 mm
• Due to individual differences, inner fender may need to be cut if it interferes with the spring
• Mark X G'S: Not tested on post-facelift model (November 2016 or later)
• GRX121 (300G): Data applies to Low Down model (approx -15mm from standard)
• Compatible with TEIN EDFS (Electronic Damping Force Controller)
• Fits Toyota Mark X (GRX120/121/130/133), Reiz (GRX122L), Lexus IS250/IS350 (GSE20/21), and Lexus IS F (USE20)
• Japan, USA, UK, and China market specifications available

* Specifications are subject to change without notice. Please verify fitment before purchase. Partial fitment list shown - other variants may be compatible.
