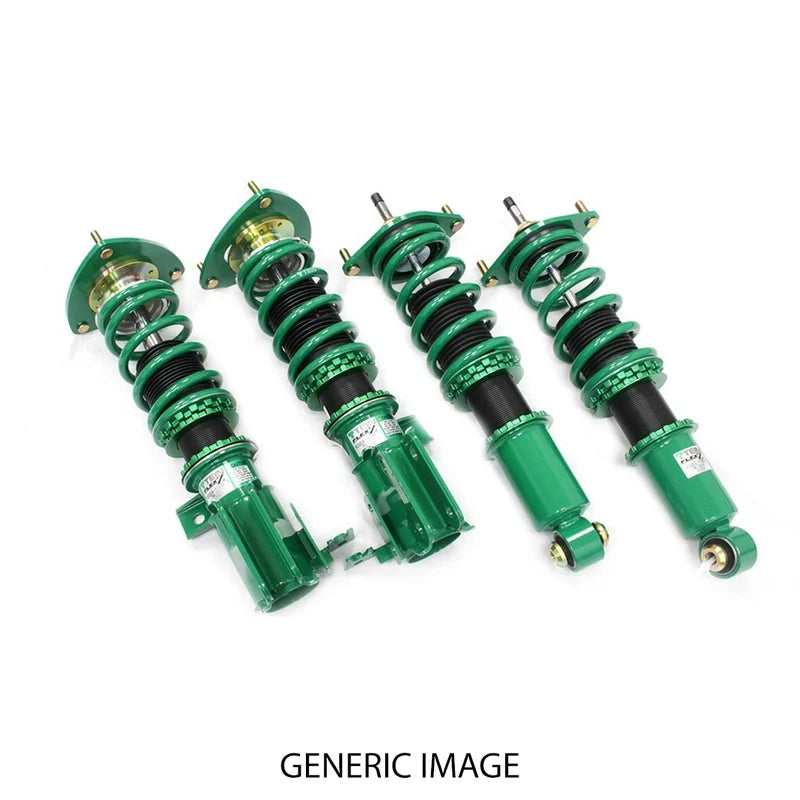

TEIN Flex Z Coilover Kit FOR HONDA CIVIC TYPE R EP3 - VSA22-CUSA1

-15%

$1,976.25

$2,325.00

Tax Included

Brand: TEIN

Availability: Available

SKU: VSA22-CUSA1

Qty:

Tags: honda , suspension , tein , type-r

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

TEIN STREET COILOVER KIT

Part Number: VSA22-CUSA1 | RRP: AUD $2,325.00 (inc. GST) | Stock: Low Stock

⚠️ IMPORTANT INSTALLATION NOTE:
• FRONT LH has left-hand threads. Be sure to tighten in the correct (anticlockwise) direction (spring seat and lock)

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	VSA22-CUSA1
RRP (inc. GST)	AUD $2,325.00
STOCK	⚠️ Low Stock

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Camber Adjust (F) / Pillow Upper (R)
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	336 lbs/in / 6.0 kgf/mm (6K)
Free Length	160 mm
I.D. (Inner Diameter)	Φ70 mm

REAR SPRING

Spring Rate	448 lbs/in / 8.0 kgf/mm (8K)
Free Length	130 mm
I.D. (Inner Diameter)	Φ70 mm

📋 VEHICLE FITMENT GUIDE

MODEL	YEAR	CHASSIS	GRADE	BODY	ENGINE	DROP (F/R)	ADJ RANGE (F)	ADJ RANGE (R)	MARKET
CIVIC	2001-2005	EM2	—	2DR	1.7L	-50mm / -55mm	-86 to -17	-87 to -27	USA
CIVIC	2002-2005	EP3	Si	3DR	2.0L	-60mm / -65mm	-96 to -27	-97 to -38	USA
CIVIC	2001-2005	ES1	—	4DR	1.7L	-45mm / -45mm	-81 to -12	-85 to -26	USA
CIVIC	2001-2005	ES2	—	4DR	1.7L	-45mm / -45mm	-81 to -12	-85 to -26	USA
CIVIC TYPE R	2001-2005	EP3	TYPE R	3DR	2.0L	-30mm / -15mm	-77 to -9	-61 to -3	UK

📝 IMPORTANT NOTES:
• FRONT: Camber adjustable upper mounts
• REAR: Pillow Upper (P/U) mounts
• FRONT LH has left-hand threads - tighten anticlockwise (spring seat and lock)
• Spring rates: Front 6K (336 lbs/in) / Rear 8K (448 lbs/in)
• Spring I.D.: Φ70 mm (both front and rear)
• Compatible with Honda Civic EM2, EP3, ES1, ES2 (2001-2005)
• USA and UK market specifications available

* Specifications are subject to change without notice. Please verify fitment before purchase.
