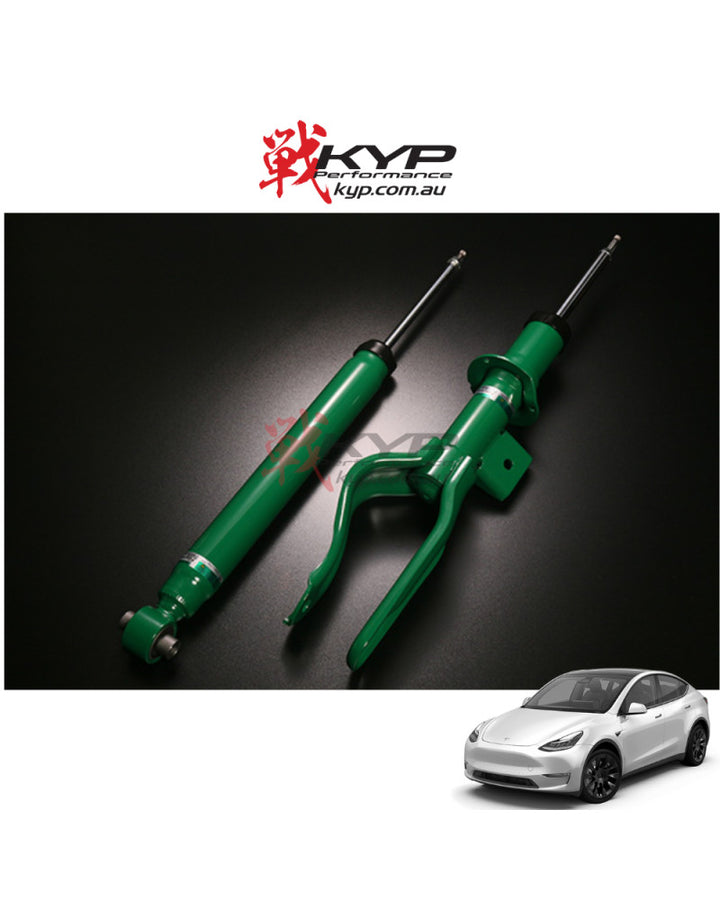

TEIN [OE SHAPE] DAMPER KIT
Part Number: VSGP4-B1DS2 | RRP: AUD $1,010.00 (inc. GST) | Stock: Low Stock
⚠️ IMPORTANT NOTES:
• NOT compatible with OE electronic damping force adjustment vehicles
• REAR: Shock absorber needs to be detached from vehicle when adjusting damping force
• Damping force adjustment knob is located at the top of shock absorber, as D.B.A. is not available
• FRONT: When installing upper mounts, tighten bolts at the recommended tightening torque of 27.5Nm
• REAR: Please refer to the included manual for the tightening torque of the upper mounts
• OE Shape Damper Kit – Maintains factory ride height while offering adjustable damping force
• Full-length ride-height adjustable design
| PRODUCT INFORMATION |
| PRODUCT NAME |
TEIN OE Shape Damper Kit |
| PART NUMBER |
VSGP4-B1DS2 |
| RRP (inc. GST) |
AUD $1,010.00 |
| STOCK |
⚠️ Low Stock |
| FEATURES |
| SPRINGS INCLUDED |
❌ No (Uses OE Springs) |
| DAMPING ADJUSTMENT |
✅ Yes (16-level) |
| FULL-LENGTH HEIGHT ADJUST |
✅ Yes |
| UPPER MOUNT |
Standard (F/R) |
| EDFC COMPATIBLE |
✅ Yes |
🔧 SPRING SPECIFICATIONS
FRONT SPRING
| Spring Type |
Use OE Springs |
| Spring Rate |
As per factory |
| Upper Mount Torque |
27.5 Nm |
REAR SPRING
| Spring Type |
Use OE Springs |
| Spring Rate |
As per factory |
| Upper Mount Torque |
Refer to included manual |
📏 RIDE HEIGHT & ALIGNMENT SPECIFICATIONS
FRONT
| Ride Height Change |
0mm (Factory height) |
| Adjustable Range |
Factory setting |
| Upper Mount |
Standard (STD) |
REAR
| Ride Height Change |
0mm (Factory height) |
| Adjustable Range |
Factory setting |
| Upper Mount |
Standard (STD) |
📋 VEHICLE FITMENT GUIDE
| MODEL |
MARKET |
YEAR |
CHASSIS |
GRADE |
DROP (F/R) |
| MODEL Y |
USA |
2020-2025 |
— |
LONG RANGE / PERFORMANCE |
0mm / 0mm |
| MODEL Y |
China |
2021+ |
— |
LONG RANGE (China produced) |
0mm / 0mm |
| MODEL Y |
UK |
2021+ |
— |
PERFORMANCE |
0mm / 0mm |
| MODEL Y |
Japan |
2022.06-2025.03 |
YL3YPT |
PERFORMANCE |
0mm / 0mm |
| MODEL 3 |
China |
2017-2021 |
— |
LONG RANGE (China produced) |
0mm / 0mm |
| MODEL 3 |
USA |
2017-2024+ |
— |
PERFORMANCE / LONG RANGE |
0mm / 0mm |
| MODEL 3 |
Japan |
2022.03-2023.08 |
3L23T |
LONG RANGE |
0mm / 0mm |
📝 IMPORTANT NOTES:
• UPPER MOUNTS: Standard (STD) both front and rear
• OE SHAPE DAMPER KIT: Maintains factory ride height while providing 16-level damping force adjustment
• SPRINGS: Kit includes dampers only – retains factory springs
• Full-length ride-height adjustable design
• NOT compatible with OE electronic damping force adjustment vehicles
• REAR INSTALLATION NOTES:
– Shock absorber needs to be detached from vehicle when adjusting damping force
– Damping force adjustment knob is located at the top of shock absorber, as D.B.A. is not available
• FRONT UPPER MOUNT TORQUE: Tighten bolts at the recommended tightening torque of 27.5Nm
• REAR UPPER MOUNT TORQUE: Please refer to the included manual for the tightening torque
• Compatible with TEIN EDFS (Electronic Damping Force Controller)
• Fits Tesla Model Y AWD Long Range/Performance and Model 3 AWD Long Range/Performance
• USA, Japan, UK, and China market specifications shown
* Specifications are subject to change without notice. Please verify fitment before purchase. OE Shape Damper Kit retains factory springs and ride height. Not compatible with OE electronic damping force adjustment vehicles. Rear shock must be removed from vehicle for damping adjustment. Follow torque specifications in included manual.
