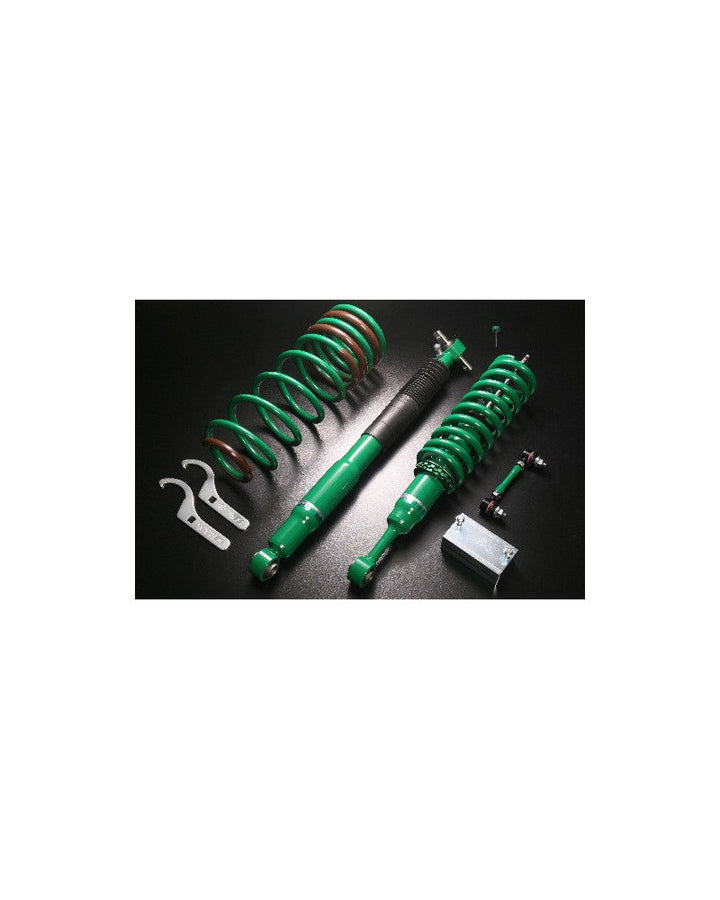

TEIN 4X4 DAMPER SPORT STRUT SET - TANK300 21+

-10%

$1,741.50

$1,935.00

Tax Included

Brand: TEIN

Availability: In Stock

SKU: VSACQ-F1SS2

Qty:

Tags: suspension , tein

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

TEIN STREET COILOVER KIT

Part Number: VSACQ-F1SS2 | RRP: AUD $1,935.00 (inc. GST) | Stock: Low Stock

⚠️ IMPORTANT NOTES:
• REAR: Sway bar link rod included in the kit must be installed
• REAR: Not ride height adjustable – Fixed lift height
• FRONT: Full-length ride-height adjustable
• Lift kit – Increases ride height by approximately +45mm

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	VSACQ-F1SS2
RRP (inc. GST)	AUD $1,935.00
STOCK	⚠️ Low Stock

🔧 SPRING SPECIFICATIONS

FRONT SPRING

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes (Front only)
UPPER MOUNT	Standard (F/R)
EDFC COMPATIBLE	✅ Yes

Spring Rate	728 lbs/in / 13.0 kgf/mm (13K)
Free Length	306 mm
I.D. (Inner Diameter)	—

REAR SPRING

📏 RIDE HEIGHT & ALIGNMENT SPECIFICATIONS

FRONT

Spring Rate	168 lbs/in / 3.0 kgf/mm (3K)
Free Length	434 mm
I.D. (Inner Diameter)	—

REAR

Ride Height Change	+45mm (Lift)
Adjustable Range	-16mm to +55mm
Upper Mount	Standard (STD)

📋 VEHICLE FITMENT GUIDE

Ride Height Change	+45mm (Fixed Lift)
Adjustable Range	Fixed – Not adjustable
Upper Mount	Standard (STD)

MODEL	MARKET	YEAR	CHASSIS	GRADE	LIFT (F/R)
TANK300	China	2021+	—	2.0L 4WD	+45mm / +45mm

📝 IMPORTANT NOTES:
• UPPER MOUNTS: Standard (STD) both front and rear
• Spring rates: Front 13K (728 lbs/in) / Rear 3K (168 lbs/in)
• LIFT KIT: Increases ride height by approximately +45mm front and rear
• FRONT: Full-length ride-height adjustable with range -16mm to +55mm from standard lift height
• REAR: Not ride height adjustable – fixed +45mm lift
• REAR INSTALLATION NOTE: Sway bar link rod included in the kit must be installed
• Compatible with TEIN EDFS (Electronic Damping Force Controller)
• Fits Tank TANK300 (2021+) – 2.0L 4WD
• China market specifications shown

* Specifications are subject to change without notice. Please verify fitment before purchase. Lift kit increases ride height by +45mm. Rear sway bar link rod included and must be installed. Rear ride height is not adjustable.
