Following the design concept of lightweight sports cars, the RSE NC Roadster titanium muffler features a unique design that is both lightweight and maximizes performance.
Suitable
| Manufacturer | engine | Model |
| MAZDA | LF-VE | NC MX-5 MIATA |
Specifications compared to the original
| R.S.E. | genuine | |
| material | Titanium | － |
| Main pipe diameter | 60.5mm | 50.8mm |
| Main pipe thickness | 1.0 mm | 1.5mm |
| Silencer diameter | 152.0mm |
210.0mm x 290.0mm Oval |
| Silencer thickness | 1.0mm | － |
| outlet diameter | 89.1mm | 76.6mm |
| Export Thick | 1.0mm | 1.5mm |
| Flange thickness | 8.0mm flat | 2.5mm press |
| weight | 2.4kg | 12.2kg |
9.8kg lighter!!
Test data
Volume test: MX-5 NCEC 6 MT @4700rpm
Exh: Prototype Catlyst: Genuine Muffer: RSE
 Sound Reducer Included ver.2
|
- |
 Sound reducer included
|
99db |
 No sound reducer
|
103db |

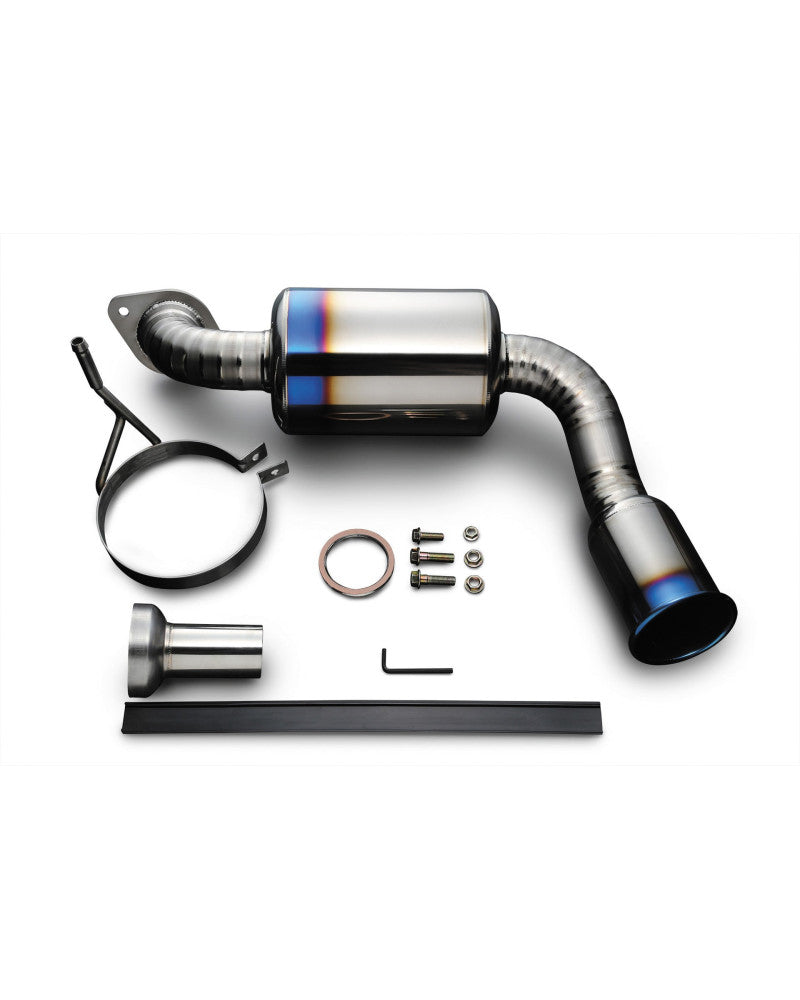

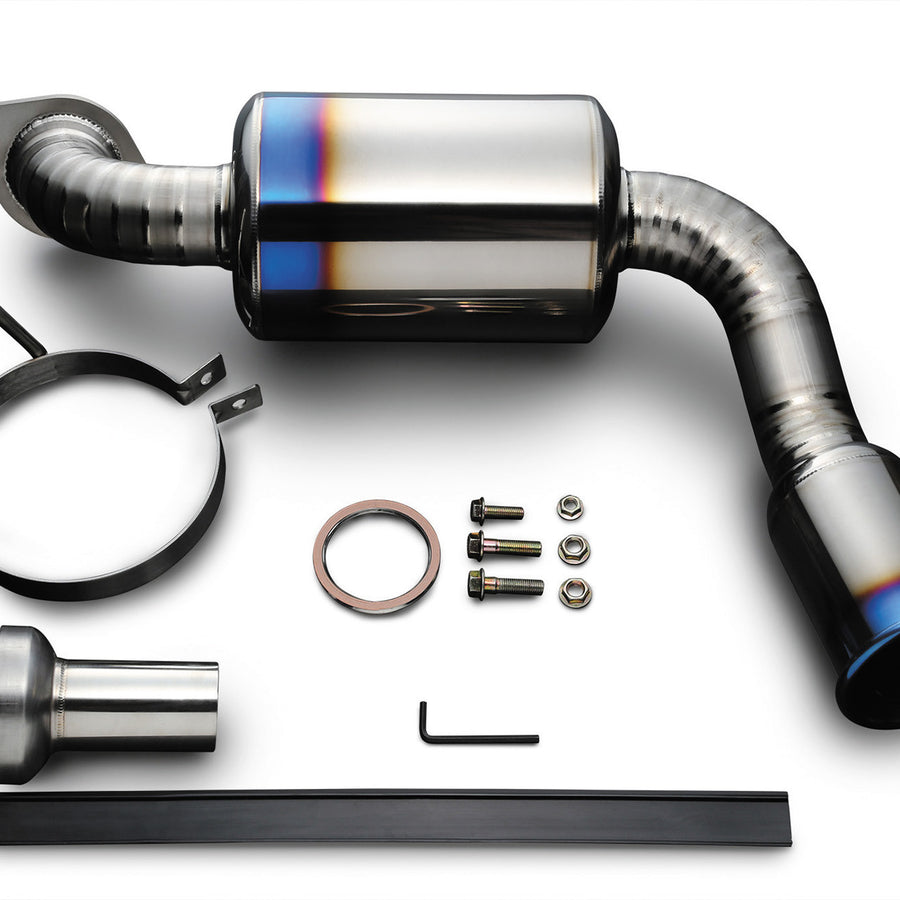

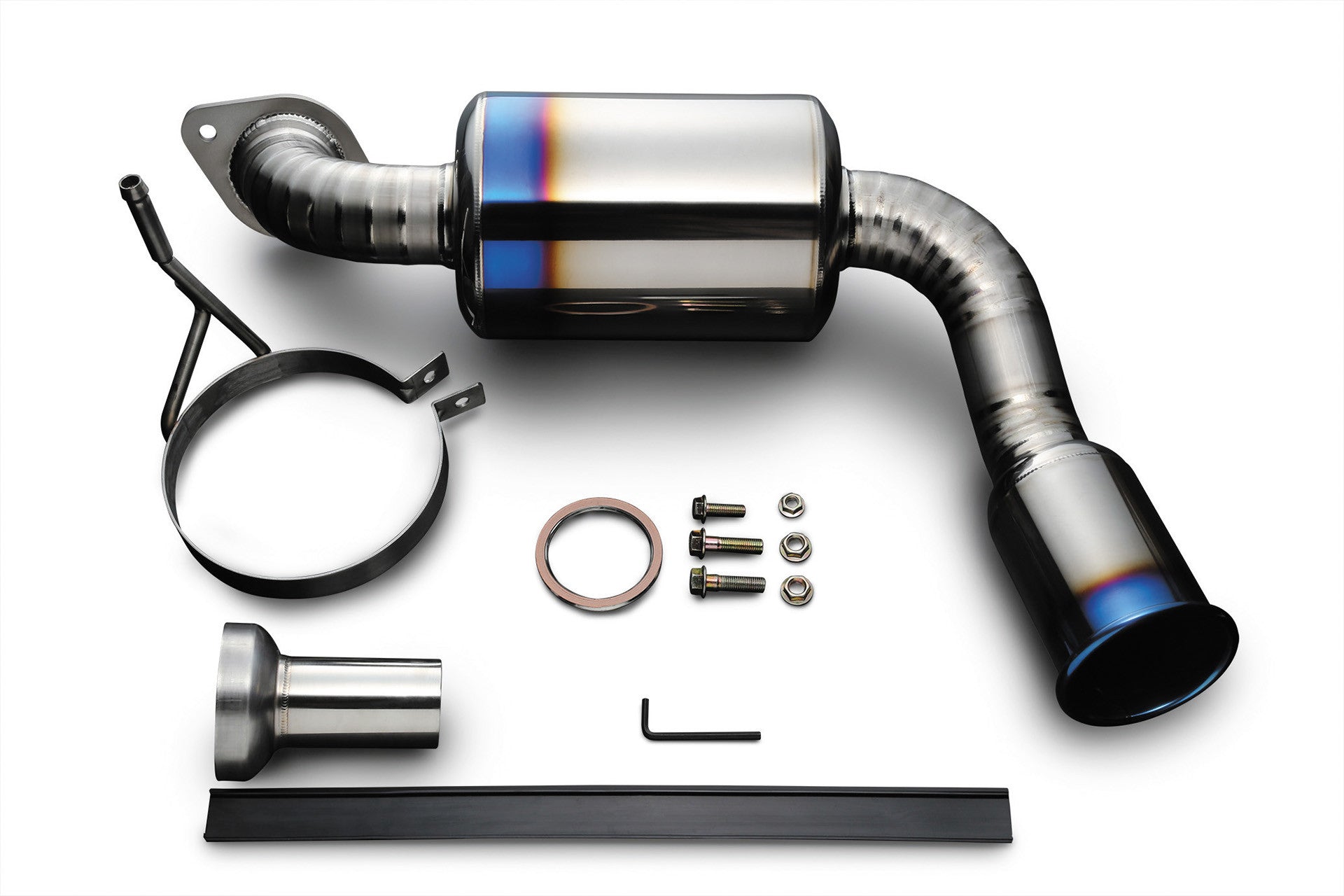

Kit contents
When using Sound Reducer ver.2, additional bolt holes may be required. See here for details.
The flange layout is the same as the original.
Both the muffler and the straight pipe alone improve performance compared to the stock setup, but installing them together further enhances it.
