Single TYPE-80 Ver.3
Evolution has reached the pinnacle of performance and beauty
Inheriting the Spartan Ver.1 and the compatibility of Ver.2,
this is the ultimate in "ideal fitment x impressive performance" that has evolved to be even more powerful and beautiful.
| Manufacturer | Model | engine |
| TOYOTA/SUBARU | GR86(ZN8) 86(ZN6) BRZ(ZD8/ZC6) FR-S(ZN-6) |
FA20/FA24 |
🔥 FR-S / 86 / BRZ──Exhaust design and performance have been refined with each generation.
The 86/BRZ/FR-S are divided into the following specifications for each generation.
First generation: ZN6 (TOYOTA 86 / FR-S) / ZC6 (SUBARU BRZ)
New generation: ZN8 (TOYOTA GR86) / ZD8 (SUBARU BRZ)
Furthermore, RSE/TOMEI USA has developed the following diverse variations:
■Single outlet (Single) / ■Dual outlet (Dual) / ■60 and 80 caliber configuration / ■Differences between versions Ver.1 / Ver.2 / Ver.3
There are a total of six types, offering a wide range of options. In this article, we will systematically summarize the differences between the newly released Single Type-80 Ver.3 and previous models, as well as the reasons for its development.
1. A new challenge: generation compatibility and latest model optimization.
The TYPE-80 Ver.1, which was released for the original ZN6/ZC6, was an exceptionally big hit model, selling over 10,000 units worldwide.
Ver.1 can be installed on GR86/ZD8,
-Bumper clearance is not optimal
・The amount of protrusion varies depending on the vehicle.
・The outer diameter of the silencer poses a risk of interference.
This caused the problem of it not being a perfect fit .
In response to these requests, RSE has created Ver.3,
a new model that is a redesigned version of Ver.1 optimized specifically for the FA24 .
2. Development philosophy: "The Art of Single"
RSE's exhaust design has always had an unwavering philosophy.
That is, to pursue the "most rational solution" according to the layout.
Among them, the single layout represented by the TYPE-80 is one answer that has pursued the following idea:
The phrase that expresses this philosophy is "The Art of Single."
However, this does not mean that it is "better than dual." RSE designs both single and dual in the optimal form depending on the vehicle characteristics, use, and desired feel .
Singles have their own philosophy, while duals have their own performance and tuning that should be pursued. Among them, the Single TYPE-80 series is positioned as "one beautiful answer when it comes to perfecting the single format."
| Ver.1 | Ver.3 | |
| Silencer Diameter | Φ152.0mm | Φ135.0mm |
| Interference risk | could be | Completely Zero |
| Protrusion amount | Varies | Ideal for ZN8/ZD8 |
Ver.3 has 10 to 20mm more protrusion
The silencer is smaller, so the volume is slightly increased.
*Ver.1 is recommended for FA20 (as it fits most naturally)
It is compatible with all of these and can flexibly accommodate future power upgrades.
3. Lightest ever: only 6.9kg
| Version | weight |
| Ver.1 | 7.3kg |
| Ver.2 | 8.5kg |
| Ver.3 | 6.9kg (lightest) |
Reasons for the weight reduction:
4. Titanium-specific sound quality: "Force of Titanium Note"
5. Volume data (Tested @ 5250rpm)
| GR86 / NEW BRZ (FA24) | 86 / FR-S / BRZ (FA20) | ||
| Sound Reducer ver.2 available |
 |
96db | 97db |
With sound reducer |
 |
101db | 101db |
No sound reducer |
 |
107db | 106db |
6. Spec comparison table (compared to genuine)
| genuine | |||
| SINGLE Ver.3 | ZN8/ZD8 | ZN6/ZC6 | |
| RB6090-SB05C | – | – | |
| material | TITANIUM | steel | |
| Main Pipe Diameter | Φ80.5mm |
Φ53.5-55.0mm |
Φ54.0mm |
| Main Pipe Thickness | 1.0mm | – | – |
| Silencer Diameter | Φ135.0mm | Φ270.0 x 630.0mm | |
| Silencer Thickness | 1.0mm | – | |
| Sub-silencer diameter | Φ118.0mm | Φ118.0mm | |
| Sub-silencer thickness | 1.0mm | – | |
| outlet diameter | Φ115.0mm | Φ110.0mmｘ2 | |
| Export Thick | 1.0mm | – | |
| Flange Thickness | 8.0mm | – | |
| weight | 6.95kg | 16.0kg | 17.4kg |

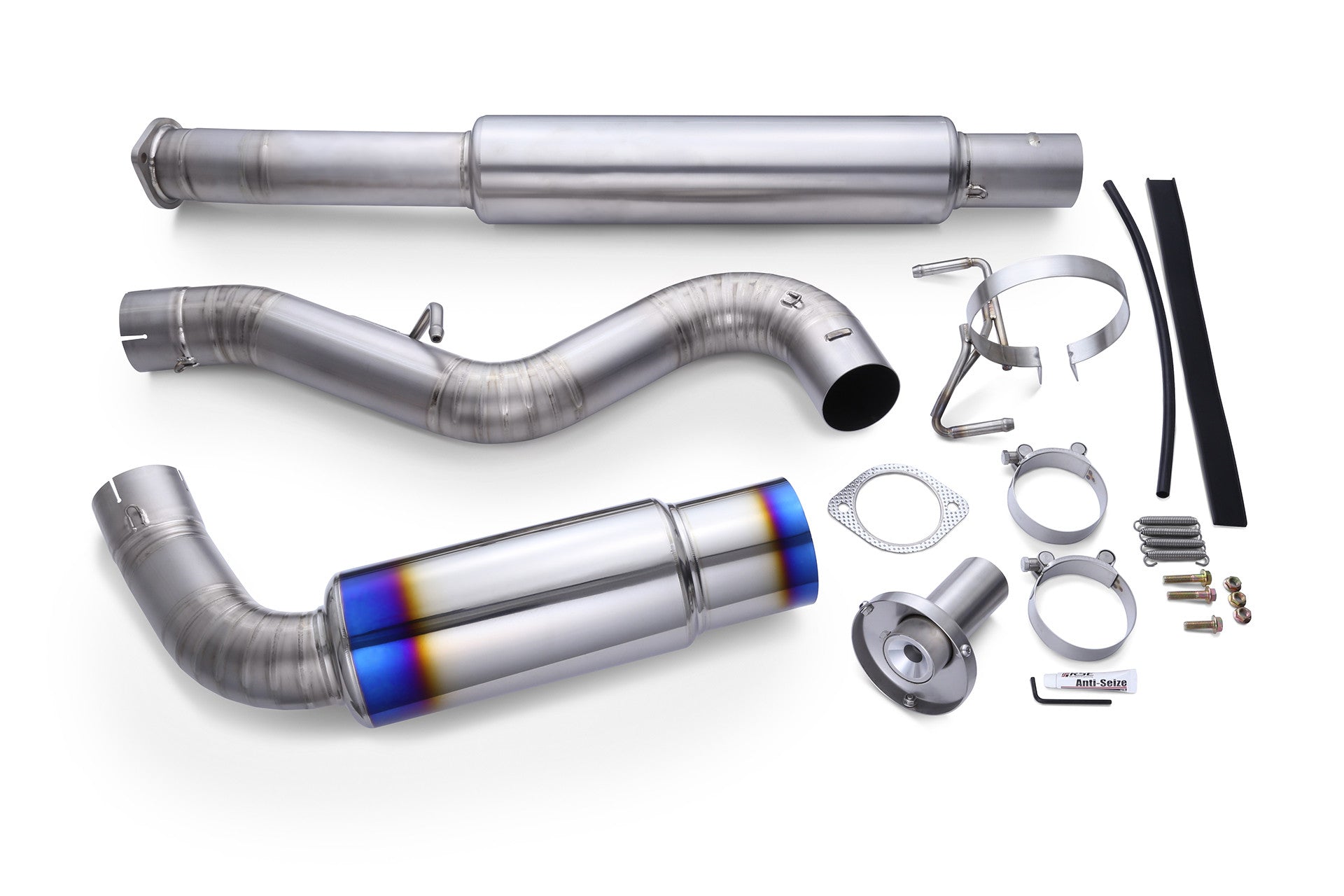

7. Kit contents (full complete)
No need to purchase additional genuine parts. Ready to install from the day it arrives.
8. RSE TYPE-80 muffler lineage (list)
| kinds | caliber | Version | Features |
| Single Type-60S | 60mm | - | Lightweight and quiet |
| Single Type-60R | 60mm | - | Wrong exit position |
| Single Type-80 Ver.1 | 80.5mm | Ver.1 | Legendary model for ZN6/ZC6 |
| Single Type-80 Ver.2 | 80.5mm | Ver.2 | Right-side exhaust model for ZN8/ZD8 |
| Single Type-80 Ver.3 | 80.5mm | Ver.3 | Latest model optimized for FA24 |
| Dual Type-D | - | - | A popular model for dual users |
✅ TYPE-80 Ver.3. The core of its value.
SINGLE TYPE-80 Ver.3 (GR86/NEW BRZ)
SINGLE TYPE-80 Ver.3 (86/FR-S/BRZ)
