Moving beyond the revolution created by the single-cylinder, the dual-cylinder brings a new presence to the Z33/350Z.
With its beautiful styling and aggressive driving performance, this revolutionary muffler established a new value for the Z33/350Z with its "single exhaust." While inheriting its philosophy and aesthetic sense, the dual layout has finally been completed, with a completely different look and presence.
Powerful and balanced. Powerful and refined. It redefines the rear view and driving performance of the Z33/350Z in a dimension different from that of a single exhaust.
| Manufacturer | Model | engine |
| NISSAN |
FAIRLADY Z Z33/350Z |
VQ35DE VQ35HR |

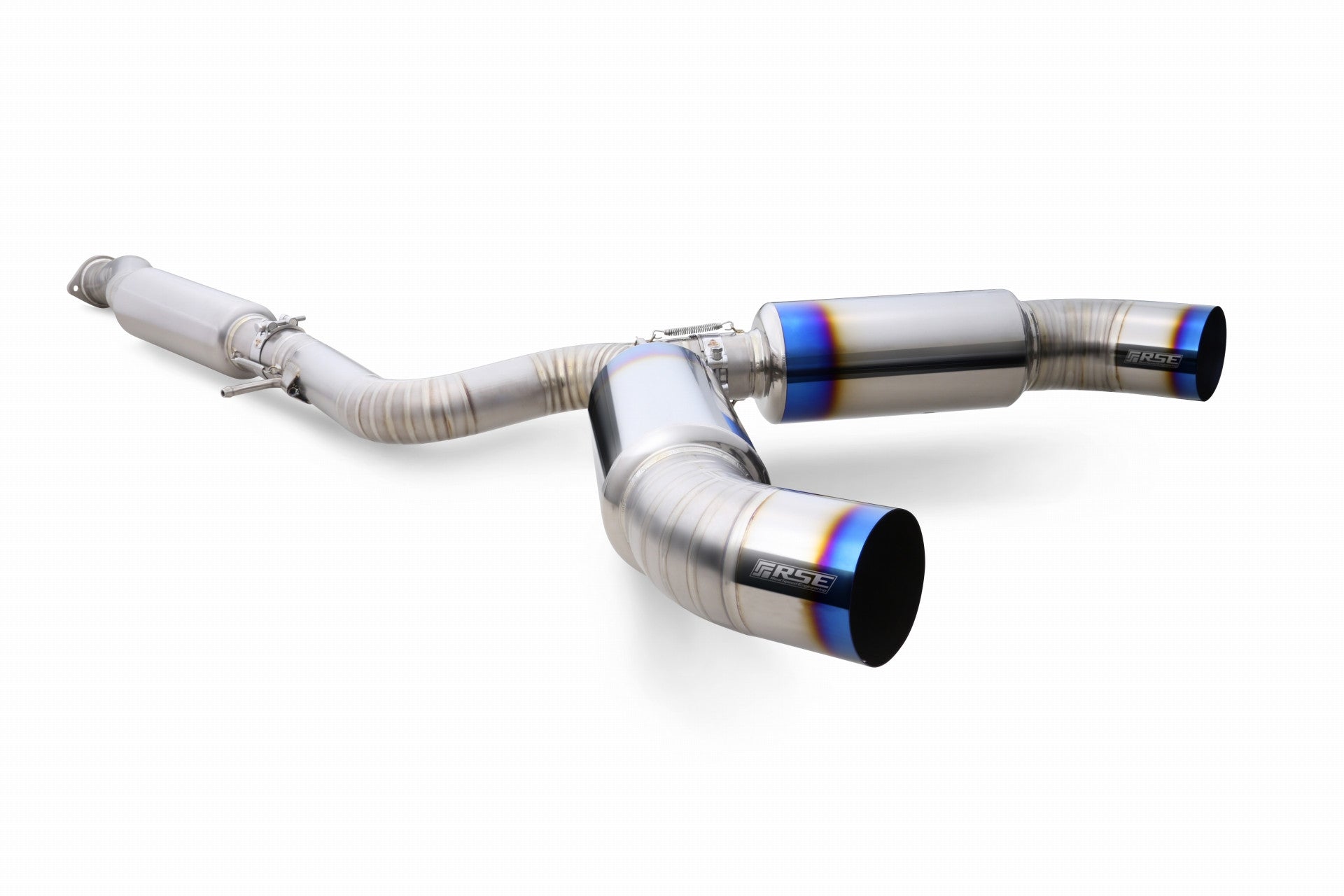

FULL TITANIUM MUFFLER for Z33/350Z
After years of refinement and evolution, two legends now stand side by side:
the TYPE-R (single), which set the standard for lightweight performance,
and the TYPE-D (dual), born from a pursuit of a balance of beauty, sound, and precision.
These two represent the next chapter for the Z33/350Z.
The Fairlady Z (Z33/350Z), introduced in 2002, was the fifth generation of the Z series and
was produced until 2008.
Powered by the VQ35DE (280 hp) in the early model, the VQ35DE REVUP (294 hp) in the mid-model, and the VQ35HR (313 hp) in the later model,
these engines offered the sharp response you'd expect from a naturally aspirated engine
, smoothly revving up to high revs. Available transmissions were a 6-speed manual or a 5-speed automatic. The direct handling without excessive reliance on electronic controls
and the throttle response that linearly synchronized with engine speeds gave the driver the feeling that their intentions were directly translated into driving performance.
Even before the advent of turbocharging and electronic control, the Z33/350Z represented the pinnacle of "pure naturally aspirated sports car perfection," laying the foundation for the evolution of subsequent Z models and truly symbolizing the golden age of pure naturally aspirated sports cars.
In 2013, RSE's US brand, TOMEI USA, announced its first exhaust for the Z33/350Z, the TYPE-R full titanium muffler. The concept was "The Art of Single," a philosophy that prioritized performance over appearance or volume .
The 80.5mm straight-through main pipe and optimized exhaust path brought out all the heartbeat of the naturally aspirated engine.
The results were clear.
With over several thousand units sold worldwide, it has become one of the most successful exhausts in the history of RSE/TOMEI USA.
After the success of the TYPE-R, many Z33/350Z owners expressed a desire for a dual-drive system with a more aggressive rear view and sound. However, RSE and TOMEI USA did not immediately respond to this request.
The reason was clear: lightness is performance.
With the technology of the time, dual-drive meant compromising on weight and efficiency.
Now, as the years have passed and titanium processing technology and layout optimization have made great advances,
the development team has taken on this concept once again.
Their goal was a dual-drive system that combined sophisticated beauty with absolutely no compromises on performance.
After years of prototyping and thorough testing,
the TYPE-D dual exhaust system is finally complete.
Its foundation is the RSE x TOMEI USA DNA of "Function over Form." While
inheriting the philosophy of the single exhaust, it elevates it to a true dual configuration that meets modern performance needs.
Key Specifications
: Main Pipe Diameter: Φ80.5mm x 2
; Material: Full Titanium
; Construction: Straight-Through
; Weight: 10.45kg (23.04lbs) ( OEM
weight: 21.0kg (46.3lbs))
; Sound: Deep, dry titanium sound quality with refined bass
; Compatible with: Nissan Z33/350Z (early, mid, and late models).
The TYPE-D achieves significant weight reduction and ideal exhaust balance, enhancing
the VQ35's inherent character with a deeper, sharper, and more distinct sound that only titanium can deliver.
| Model | Layout | weight | Features |
| TYPE-R (Single) | single | 5.9kg | Ultra-lightweight, prioritizes response, and is ideal for the circuit. |
| TYPE-D (Dual) | dual | 10.45kg | Combining looks and performance, street-oriented |
The TYPE-R embodies pure competition performance,
while the TYPE-D combines beauty, sound, and ease of use for everyday use.
Both share the uncompromising titanium workmanship and design philosophy of RSE x TOMEI USA.
The TYPE-D produces a Force of Titanium Note.
At idle, it produces a calm low frequency sound, which
rises into a dry mid-range as you step on the throttle.
Then, at higher revs, it develops into the sharp, clear high notes that are unique to the VQ35.
It's not just an exhaust note; it's
an instrument designed for sound .
The TYPE-D is not simply an evolution.
It is a tribute to the legendary Fairlady Z.
The lightweight purity of the TYPE-R and
the expressive power and visual balance of the TYPE-D.
This combination is the ideal performance pursued by the RSE x TOMEI USA engineers. By
combining the Z33/350Z (early and mid-model) exhaust manifold with the TYPE-R/TYPE-D,
the level of naturally aspirated engine performance will be raised even further.
(The exhaust manifold for the later HR model will be shared with the Z34/370Z and will be released soon.)
This exhaust embodies the harmony of driving pleasure and functional beauty. If the TYPE-R symbolizes "raw performance," the TYPE-D embodies "the soul and style of the Z."
Choose the one that resonates with you and
enjoy every moment.
TYPE-D -DUAL-
| Part Number | Product Name | |
| RB6090-NS04A |
FULL TITANIUM MUFFLER |
 |
| RB6100-NS02A |
FULL TITANIUM MID PIPE |
 |
| RB6100-NS04A |
FULL TITANIUM MID PIPE |
|
| RB6110-NS02A |
FULL TITANIUM Y PIPE |
 |
TYPE-R -SINGLE-
Spec comparison with genuine
| R.S.E. | genuine | ||
| TYPE-D [DUAL] | TYPE-R [SINGLE] | ZN6/ZC6 | |
| RB6090-NS04B | RB6090-NS04A | – | |
| material | Titanium | stainless | |
| Main Pipe Diameter | Φ80.5mm | Φ80.5mm | Φ65.0mm |
| Main Pipe Thickness | 1.0mm | 1.5mm | |
| Silencer Diameter | Φ152.0mm |
Oval Φ190.0×340.0mm width 600mm |
|
| Silencer Thickness | 1.0mm | - | |
| Sub-silencer diameter | Φ119.0mm | Φ115.0mm | - |
| Sub-silencer thickness | 1.0mm | - | |
| outlet diameter | Φ115.0mm×2 | Φ101.0mm×2 | |
| Export Thick | 1.0mm | - | |
| Flange Thickness | 8.0mm | ||
| weight | 10.45kg | 5.9kg | 21.0kg |
Volume Test
*When only the muffler is installed
| TYPE-D[DUAL] Tested@4650rpm |
|
|
With sound reducer
ver.2
|
90db |
|
With sound reducer
|
95db |
|
No sound reducer
|
104db |
Kit contents
This complete kit includes all the gaskets, bolts, and bolt anti-seize material needed for installation,
so you can get started right away without having to worry about purchasing genuine parts.
