Compatibility
| Manufacturer | engine | Model |
| SUBARU | EJ20/EJ25/FA20DIT |
2011-2014 WRX/STI GVB/GVF 2015-2021 WRX/STI VAB/VAG |
| RSE | Genuine (4Dr sedan) | |||
|
TYPE-D [DUAL] |
TYPE-R [SINGLE] |
'11-'14 WRX/STI GVB/GVF |
'15-'21 WRX-STI VAB/VAG |
|
| Part Number | RB6090-SB02D |
JDM: RB6090-SB01D USDM: RB6090-SB02C |
||
| material | Titanium | - | - | |

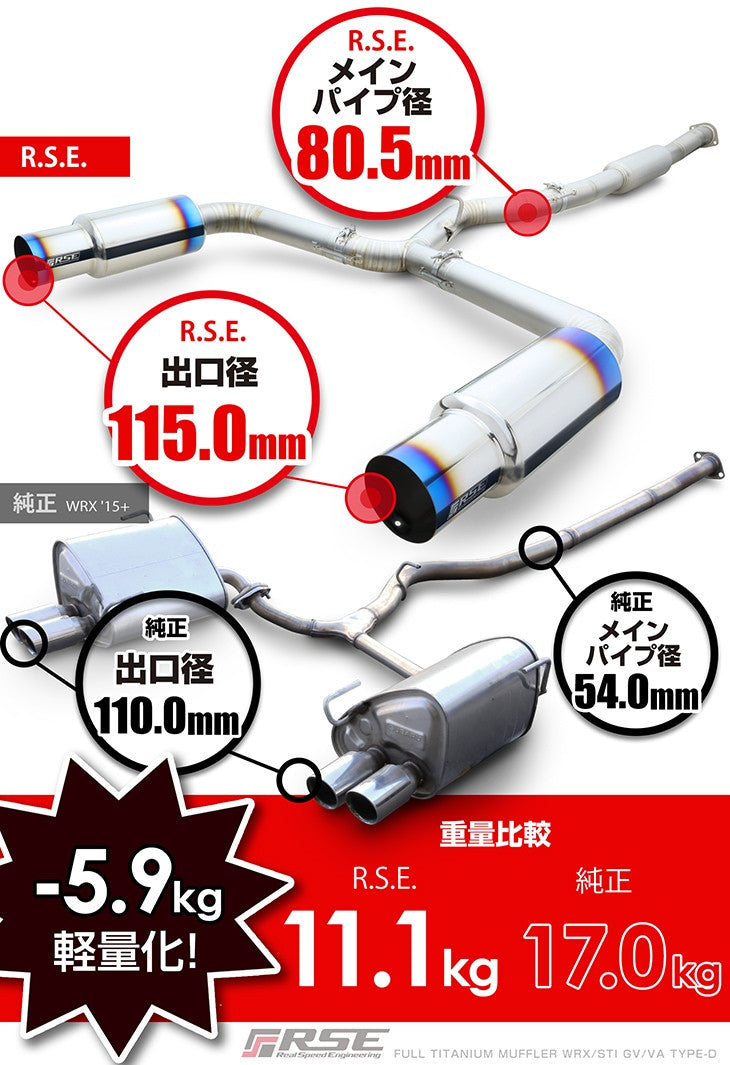

| Main Pipe Diameter | 80.5mm | 60.5-42.7mm | 60.5-42.7mm | |
| Main Pipe Thickness | 1.0mm | 1.5mm | 1.5mm | |
| Silencer Diameter | 152.0mm x 2 | 152.0mm | - | - |
| Silencer Thickness | 1.0mm | - | - | |
| Sub-silencer diameter | 118.0mm | - | - | - |
| Sub-silencer thickness | 1.0mm | - | - | - |
| Outlet diameter | 115.0mm x 2 | 115.0mm | 80.0mm | 80.0mm |
| Outlet thickness | 1.0mm | 8.0mm | 8.0mm | |
| Flange Thickness | 8.0mm |
JDM: 2.0mm USDM: 8.0mm |
2.0mm | 2.0mm |
| weight | 11.1kg |
JDM: 7.0kg USDM: 7.2kg |
23.0kg | 17.0kg |
*Muffler only
| TYPE-D | |
 With sound reducer ver.2
|
81db |
 With sound reducer
|
85db |
 No sound reducer
|
91db |

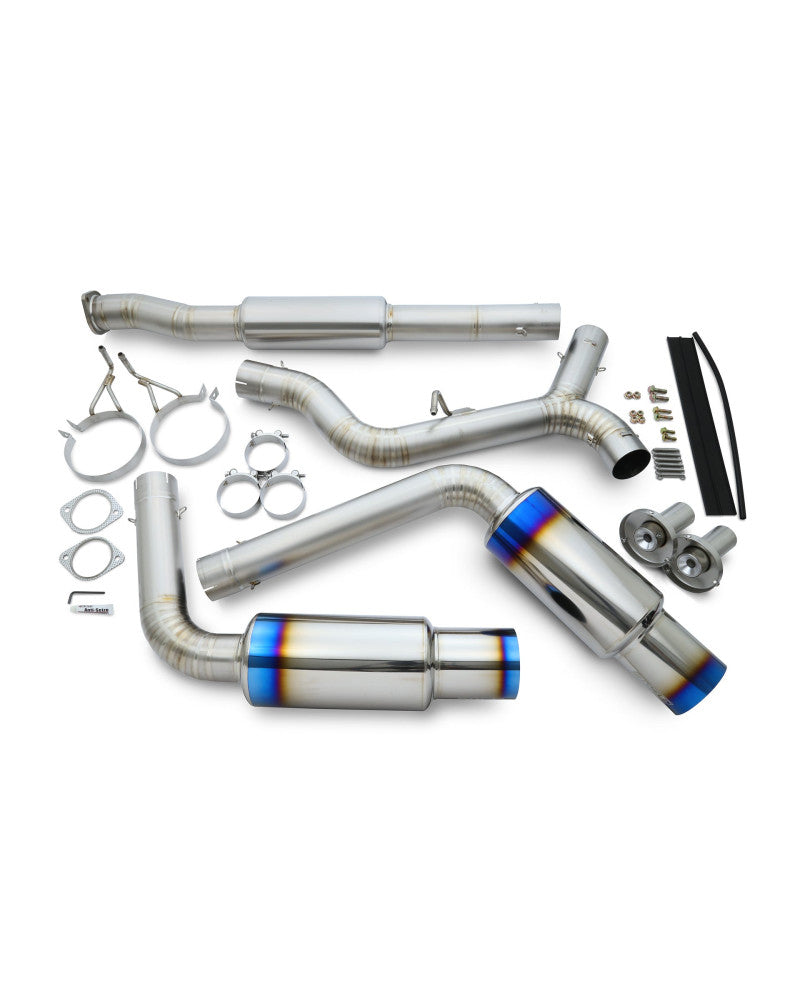

This complete kit includes all the gaskets, bolts, and bolt anti-seize material needed for installation,
so you can get started right away without having to worry about purchasing genuine parts.
