*Active Sound Control Canceller is not included. Protect the vehicle-side harness with vinyl tape, etc., and secure it to nearby structures with tie wraps, etc.
| Manufacturer | engine | Model |
| HONDA | K20C | Civic Type R FL5 |

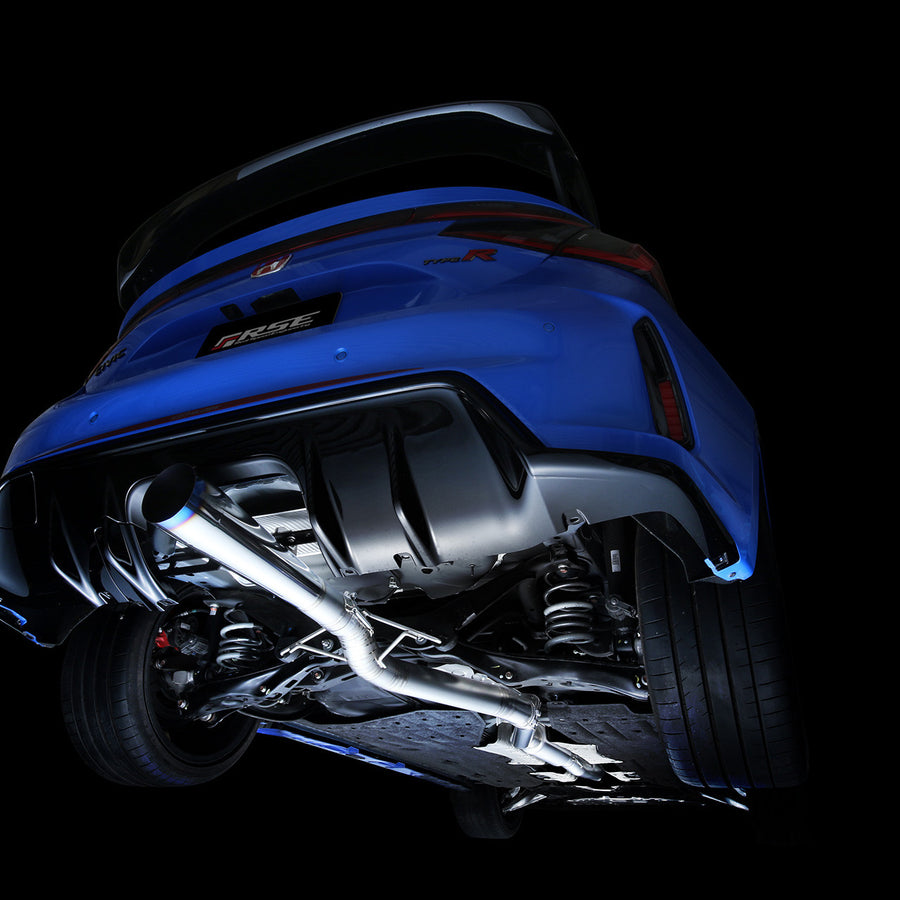

TYPE-R [SINGLE]
TYPE-D [DUAL]
Specs vs. OEM
| RSE | genuine | ||
| TYPE-R | TYPE-D | ||
| Part Number | RB6090-HN06D | RB6090-HN06E | - |
| material | titanium | - | |
| Main Pipe Diameter | 80.5mm | 80.5mm | 60.0mm |
| Main Pipe Thickness | 1.0mm | - | |
| Sub-silencer diameter | 118.0mm | 118.0mm | 124.0 mm |
| Sub-silencer thickness | 1.0mm | - | |
| Silencer Diameter | - | 135mm | - |
| Silencer Thickness | - | 1.0mm | - |
| Outlet diameter | 115.0mm | 115.0mm x 2 | 86.0mm*2 |
| 110.0mm*1 | |||
| Outlet thickness | 1.0mm | - | |
| Flange Thickness | 8.0mm | 6.0mm | |
| weight | 7.1kg | 11.3kg | 18.3kg |
Volume test @3500rpm
*Since the specified rotation speed is not reached, the close-range exhaust noise was measured at 3500 rpm (in-house measurement reference value).
| TYPE-R | TYPE-D | |
 With sound reducer ver.2
|
91db | 91db |
 With sound reducer
|
95db | 98db |
 No sound reducer
|
105db | 107db |
*When only the muffler is installed

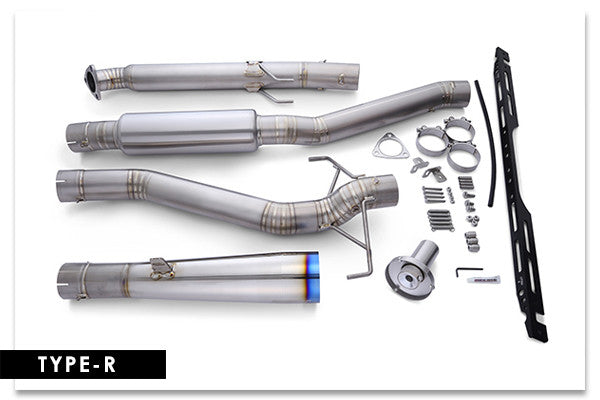

Kit contents
This complete kit includes everything you need for installation, including gaskets, bolts, and bolt anti-seize agent, so you can get started right away without having to worry about purchasing genuine parts.
*Active Sound Control Canceller is not included. Protect the vehicle-side harness with vinyl tape, etc., and secure it to nearby structures with tie wraps, etc.
TYPE-D
TYPE-R
