RSE Forged Piston 2JZ-GTE 87.00mm CH29.50 (3.6) CP

Part no. RA202A-TY03BPPistons

$2,299.00

Inc. GST · or 4 payments of $574.75 with afterpay zip

Not sure it fits? WhatsApp us your car — we'll check before you buy.
  • Shipping from $15Flat rate $15 · Signature $30 · Express $25. Final cost at checkout.
  • Genuine Real Speed Engineering partSourced through authorised channels
  • Fitting in Welshpool118 Briggs St · book a fitting

Product details

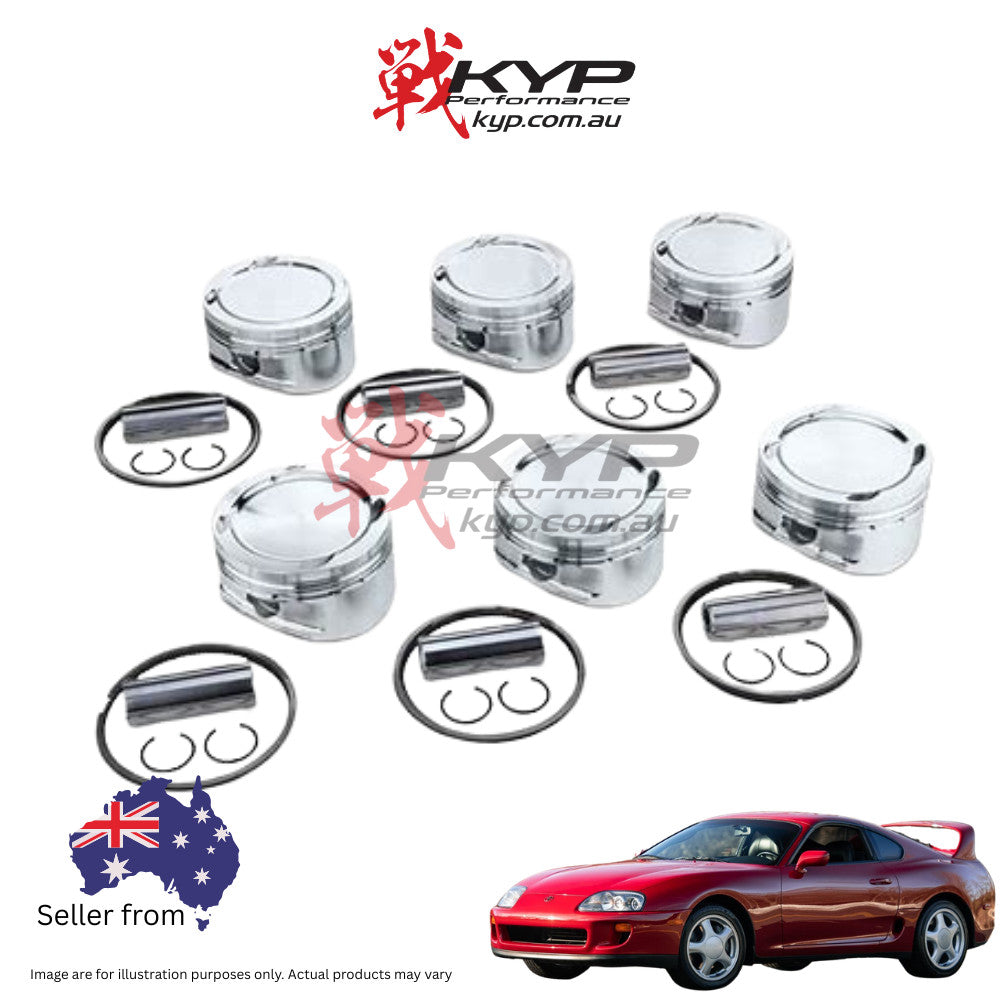

The RA202A-TY03BP is a high-performance forged piston kit designed for the Toyota 2JZ-GTE engine. Manufactured by Race Series Engineering (RSE), this kit is engineered to enhance engine durability, strength, and performance, making it suitable for applications ranging from street performance to competitive motorsports.

Key Features & Specifications

  • Bore Diameter: 87.00mm (1.0mm over the OEM bore), allowing for increased displacement and potential power gains.

  • Compression Height: 29.50mm (3.6 inches), designed to maintain proper compression ratios and engine balance.

  • Piston Pin Dimensions:

    • Pin Diameter: 22.0mm
    • Pin Length: 64.0mm
  • Valve Recess: Equipped with valve reliefs to accommodate high-lift camshafts and prevent piston-to-valve contact.

  • Crown Volume: -22.6cc, influencing the compression ratio and combustion characteristics.

  • Piston Weight: 319.0g

  • Piston Pin Weight: 133.0g

  • Total Weight: 452.0g

  • Ring Specifications:

    • Top Ring: 1.20mm x 2.90mm
    • Second Ring: 1.20mm x 3.00mm
    • Oil Ring: 2.00mm x 2.70mm
  • Material: Crafted from A2618 aluminum alloy, known for its high strength and excellent thermal properties, suitable for high-performance applications.

Additional Notes

  • Intended Use: These pistons are designed for competition and track use only.

Brand
RSE
Series Name
FORGED PISTON KIT 87.00MM CH29.50 (3.6) CP
Product Number
RA202A-TY03BP
Compatible Car
TOYOTA
Compatible Engine
2JZ-GTE
Product Description
Bore diameter (mm) 87.00 (genuine +1.0) Pin diameter (mm) 22.0 Pin length (mm) 64.0 Circlip inner diameter (mm) 22.0 Valve recess Yes Compression height (mm) 29.50 (genuine -4.5) Crown volume (cc) - 22.6 Piston weight (g) 319.0 Pin weight (g) 133.0 Total weight (g) 452.0 Top ring (mm) 1.20 x 2.90 Second ring (mm) 1.20 x 3.00 Oil ring (mm) 2.00 x 2.70 Material A2618
Notes
Images are for illustration purpose only. Actual product may vary.
