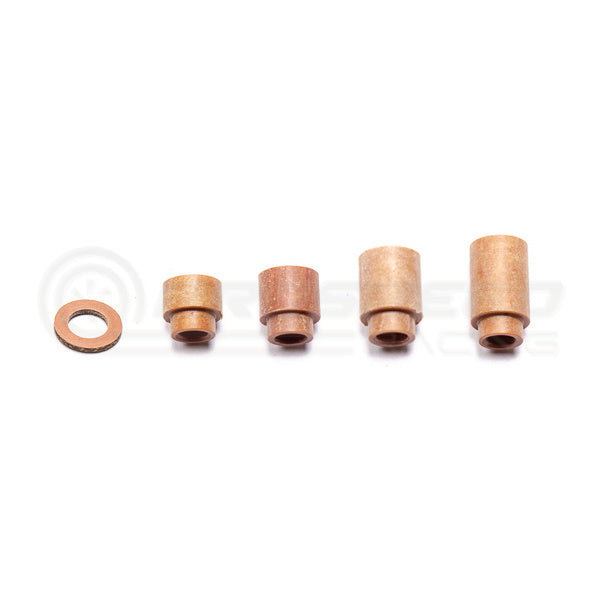

These press-fit spacers and washers are used with many Radium Engineering kits for thermally isolating the fuel rail from the engine.
NOTES:
- These are sold individually. Double check how many are required prior to purchasing.
- Spacer height measurement does not include press-fit insert length. Example: total height for 14-0482 Phenolic Insulating Spacer, 11mm is 17.3mm.
- Mounting hardware is not included. However, most bolts are common and can be sourced in local hardware stores.
SPACER SPECIFICATIONS:
- Material: Phenolic Resin
- Outer Diameter: 19mm
- Inner Hole Diameter: 9.6mm
- Press-Fit Outer Diameter: 14.2mm
- Press-Fit Insert Length: 6.4mm
- Max Temperature: 265F
- Tensile Strength: 17,000psi
WASHER SPECIFICATIONS:
- Material: Phenolic Resin
- Outer Diameter: 14.5mm
- Inner Hole Diameter: 8.1mm
- Washer Thickness: 1.3mm
- Max Temperature: 265F
