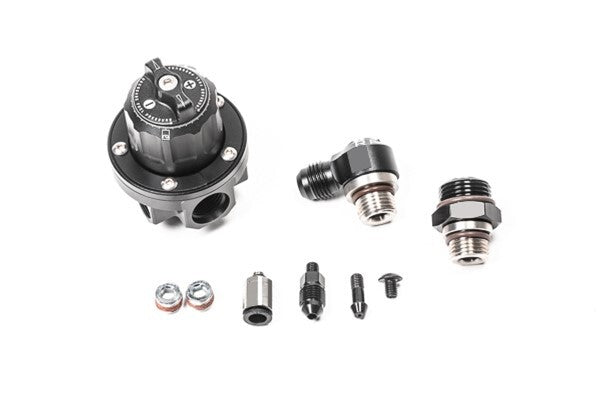

The Radium Direct Mount Regulator-Rotating Assembly (DMR-RA) is a compact high performance adjustable EFI fuel pressure regulator.

MOUNTING
This regulator is designed with a unique highly versatile mounting system. It can be mounted directly to a compatible fuel rail port using the included 360 degree swiveling adapter, or mounted remotely away from the fuel rail (using 20-0624).

The compact size fits in areas with limited space, without sacrificing performance.

PLUMBING
The main inlet port on the regulator is female threaded for 6AN ORB. A swiveling double ended adapter (shown below) is included which allows the regulator to be used in any compatible 8AN ORB fuel rail port, such as those found Radium Engineering fuel rails. Other swivel adapters are available but sold separately.

If mounting the regulator off-rail, other adapters can be screwed into this regulator port (sold separately).

The bottom return port is threaded for 6AN ORB. The provided 90 degree 6AN male fuel return fitting can swivel 360 degrees, permitting a multitude of mounting configurations. Other adapter fittings can be installed in the return port if needed (sold separately).

This regulator has two 1/8" NPT side port locations that can be used with a pressure gauge, transducer, temperature probe, etc. Two 1/8" NPT plugs are provided.

FUEL PRESSURE ADJUSTMENT
RA-series regulators feature the first tool-less pressure adjustment. A jam nut and set screw are no longer required. With a simple turn of the knob, pressure will be increased or decreased.

To aid in adjusting pressure, there are incremental detents that provide haptic feedback to the user. Every detent permits 1psi (+/-0.5psi) of adjustment depending o
