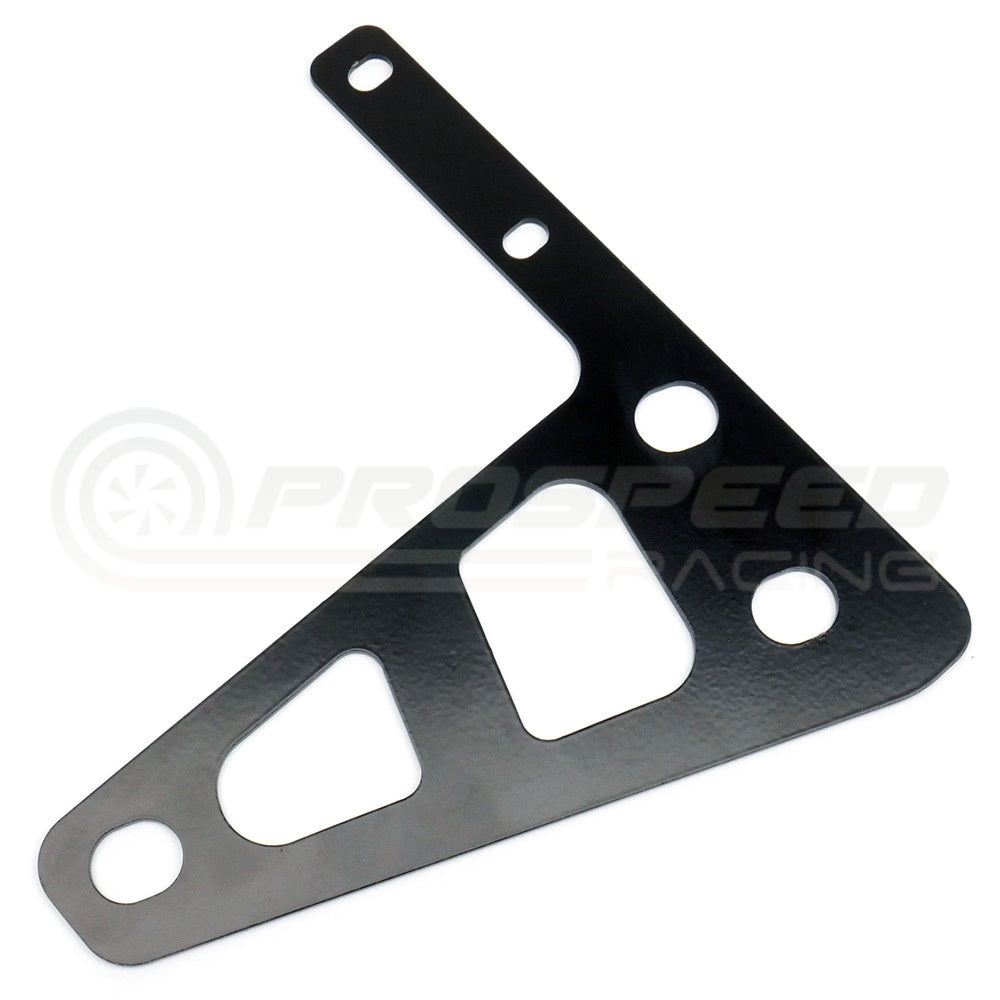

To allow installation of the PSR RHD Multi Fit Catch Can bracket, cable throttle vehicles with cruise control will need to relocate the cruse control module located on the passenger side strut tower. Fortunately PSR have produced a solution that relocates this module with no other modifications required.

Vehicle Fitment:

• 2001-2005 Subaru WRX (Cable Throttle with Cruise Control)
• 2001-2005 Subaru STI (Cable Throttle with Cruise Control)

PSR RHD Bracket Installation Instructions:

• Click to download - 2001-2007 WRX/STI

Notes:

• To reduce the chance of the cruise thottle cable twisting it is recommended to remove the cable from the second throttle body cable guide completely and then reinstall after installing the module to the relocation bracket.
• The rubber grommets in the OEM cruise module bracket will be reused.
• We recommend unclipping the starter motor power cables from the bracket and re-routing the cruise throttle cable underneath, then reattach the power cables.
