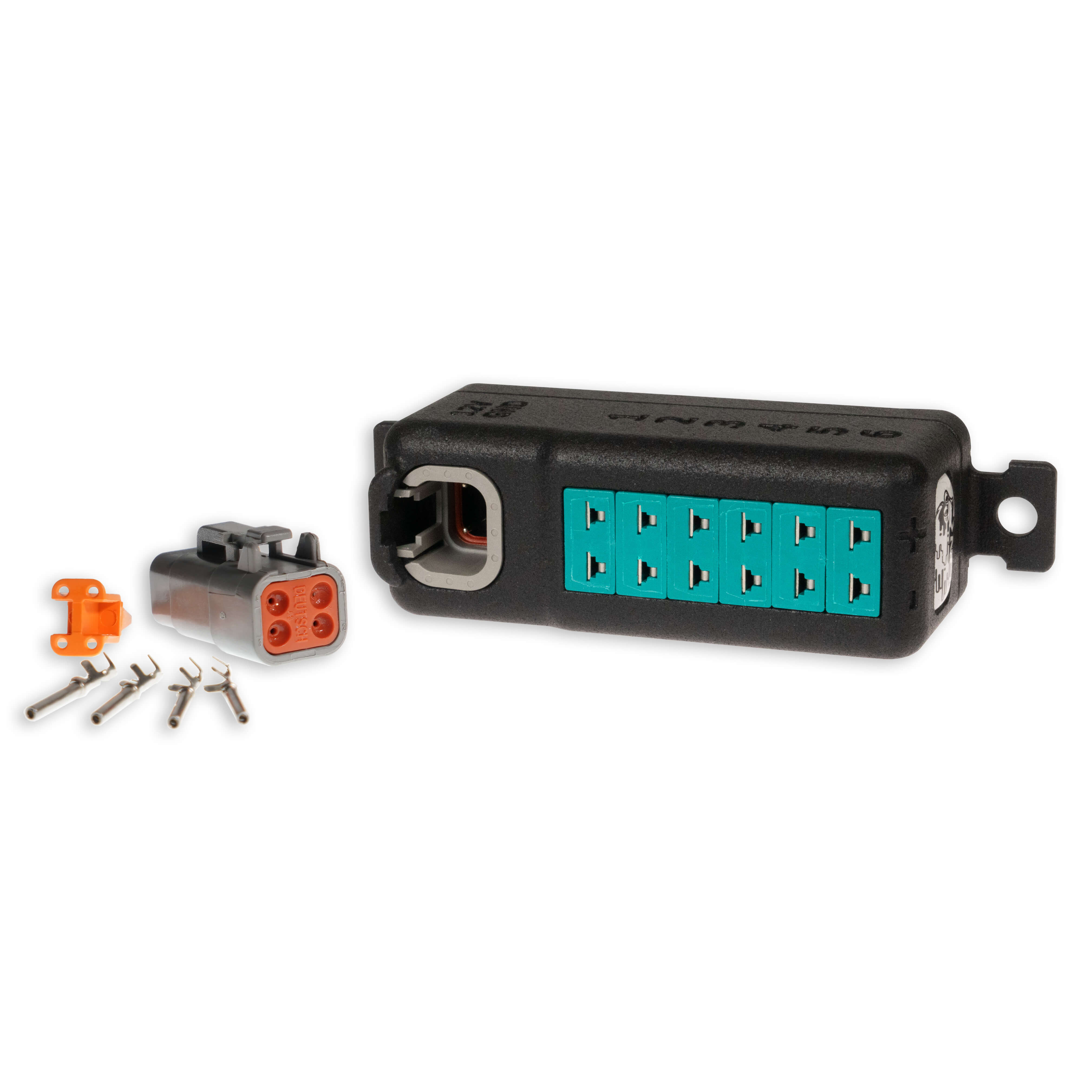

The Link 6-Channel EGT to CAN Module/Amplifier allows up to 6 Type-K thermocouples to be connected to your Link ECU via CAN, providing accurate multi-channel temperature monitoring without using the ECU's analogue inputs.
Ideal for monitoring individual cylinder exhaust gas temperatures, the TCC06 can also be used for a range of other temperature measurements, including pre- and post-intercooler, turbocharger housing, cylinder head, coolant and oil temperatures. Monitoring individual EGTs allows cylinder-to-cylinder temperature differences to be identified and the data used for tuning, individual cylinder trim and engine protection strategies.
Each of the 6 Type-K inputs features cold-junction compensation, with temperature data transmitted directly over CAN to the ECU. The module connects through a four-pin DTM connector using Link's standard CAN pinout and is pre-configured for Link ECU integration.
Built-in wireless connectivity allows the TCC06 to be configured and updated from a smartphone or PC, while also providing access to live temperature readings and thermocouple status.
Models Supported |
All Link ECUs with CAN Bus support. |
