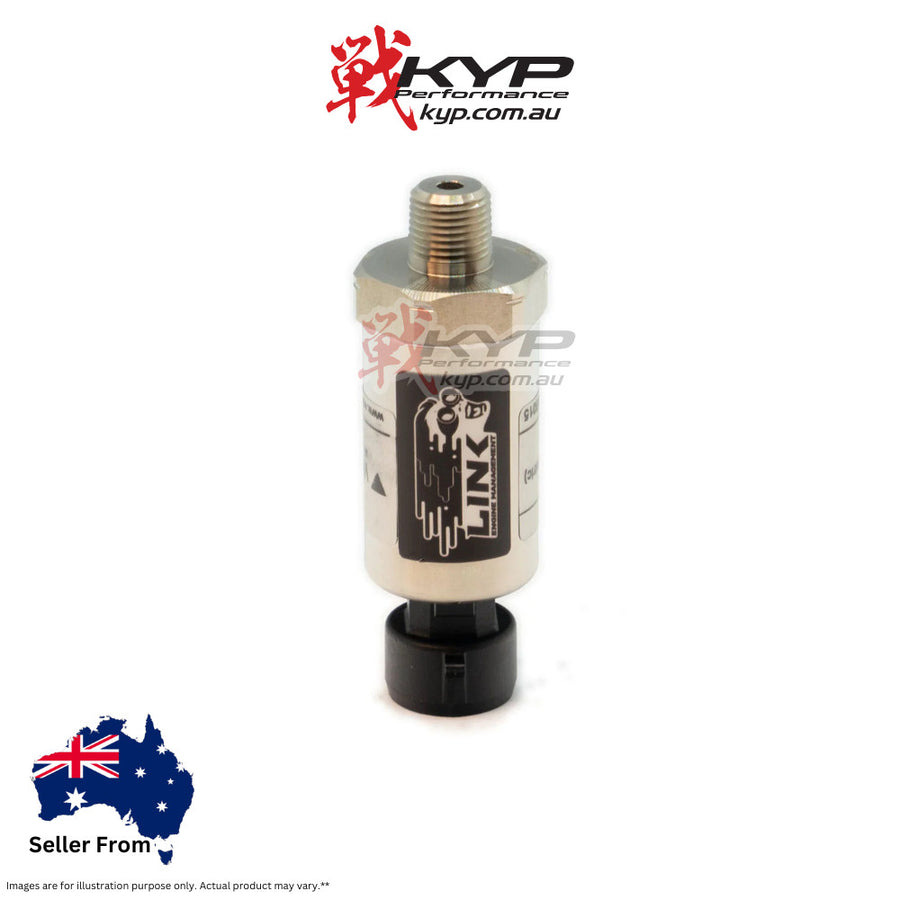

LINK PRESSURE SENSOR, OIL OR FUEL, 10 BAR, 1/8 BSP

• Oil or Fuel pressure
• 10 Bar/150psi
• 1/8” NPT Thread
• Includes plug and pin kit

Technical Specs and Wiring

Up to 150 PSI above atmospheric pressure, cannot be used to read vacuum
0.5v = 0bar / 0PsiG
4.5v = 10 Bar / 145.03PsiG
