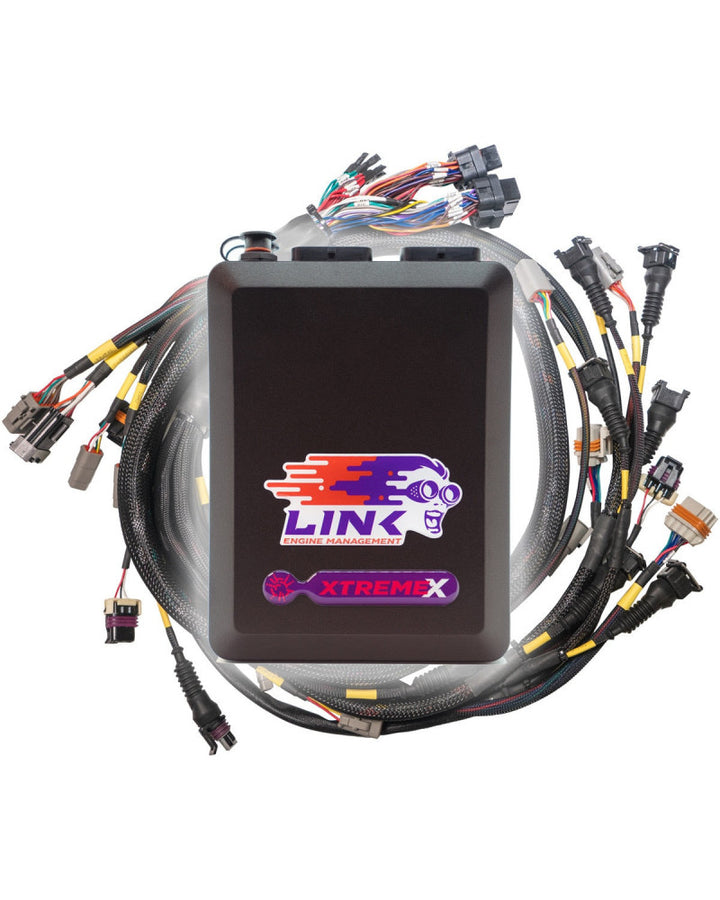

LINK G4X XTREME ECU + TERMINATED LS ENGINE HARNESS DRIVE-BY-WIRE BUNDL

Description

Description

The quickest, easiest, tidiest and most cost effective way to connect a Link ECU to yourÂ Drive-by-Wire/E-ThrottleÂ LS V8 engine.Â

Bundle Includes:

G4X XtremeX ECU (8 x Injector and 8 x Ignition Drives)
Terminated Engine Harness GM LS GEN3/4*
LS DBW Adapter Loom

*Notes for use with Gen 4 Engines

A cam sensor harness extension will be needed to accommodate the Gen 4 LS front mounted cam sensor. Â Â Â
A small modification is required to the crank sensor connector. See Ã¢â¬Åcrank connectorÃ¢â¬ section in installation manual for details. Â Â Â
Injector Connector Adapters to USCar connector will be required for most Gen 4 Engines. Check your injector connector to confirm. Use Link PN 101-0287 Â Â Â
To support Gen 4 factory knock sensors you will require the Link LS Gen 4 Knock Adapter Loom (PN 101-0306) Â Â
To support the factory Gen 4 MAP sensor you will require a Link LS Map Adapter Loom plus a Gen 3 to Gen 4 MAP sensor extension harness (alternatively you can use a Link MAP sensor which is directly supported by the harness)

PCLink MAP Files
Gen3 DBW Base Map for G4X XtremeX/StormX

Gen4 DBW Base Map for G4X XtremeX/StormX
