Koyo Performance Radiator - Nissan Silvia/200SX (S14/S15) - SR20DET MT

Koyorad builds all-aluminium radiators engineered to outperform the factory unit while retaining the OE mounting points for a straightforward install. This unit is application specific for the Nissan Silvia/200SX running the SR20DET turbo four-cylinder, giving the cooling system extra headroom for sustained street, drift or track use. Nocolok furnace brazed and hand Heliarc welded, it's built with a billet filler neck and tight tube and fin tolerances for consistent heat transfer.

This listing covers the Nissan Silvia/200SX S14 (1993-1998) and S15 (1999-2002), both fitted with the SR20DET 2.0L turbo engine. It uses the factory fan shroud mounting points and stock hose connections, so no modifications are required to install.

Note: This radiator is for manual transmission vehicles only and is not compatible with automatic S14/S15 models.

Specifications

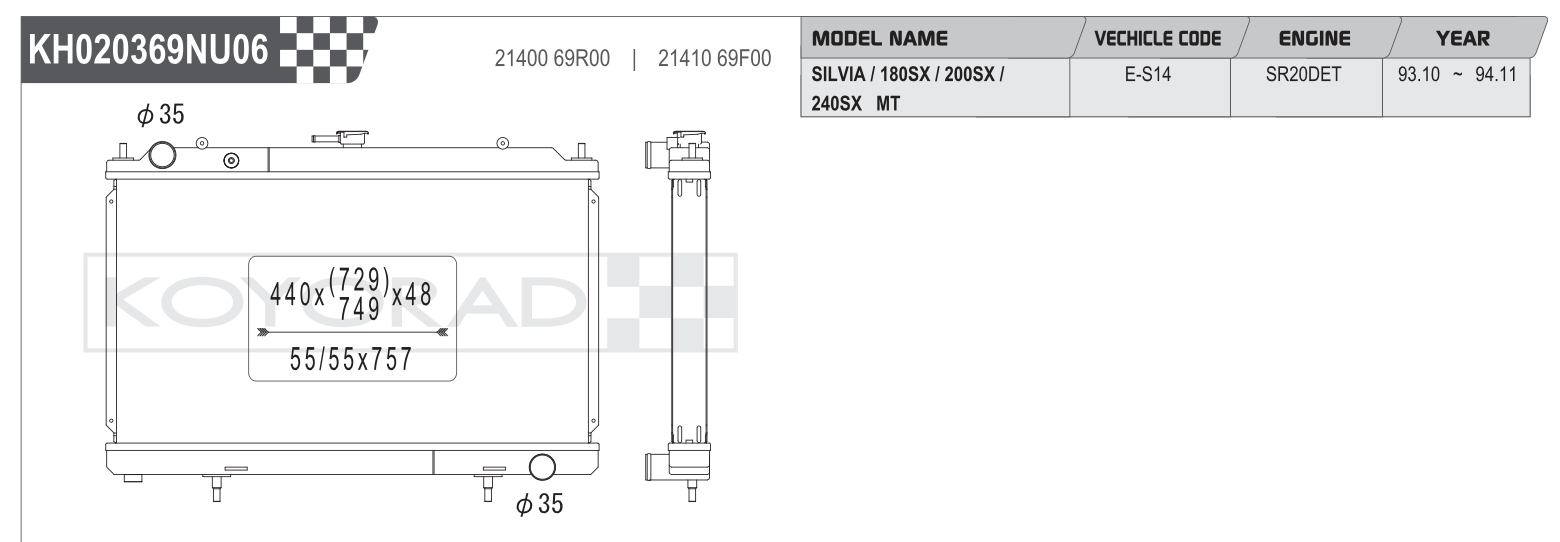

• Part number: HH020369N / KH020369NU06
• Construction: All aluminium, Nocolok furnace brazed, Heliarc TIG welded
• Core thickness: 48mm
• Core dimensions (H x W): 440 x 729/749mm
• Tube pitch: 55/55 x 757mm
• Inlet/outlet diameter: Ø35mm (top and bottom)
• Fan shroud: Retains OEM mounting points
• Hoses: Compatible with stock radiator hoses
• Fitment: Direct bolt-in, no modifications required
• Sold individually

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please ensure your vehicle's year and transmission type are confirmed before ordering.

Not sure if this radiator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
