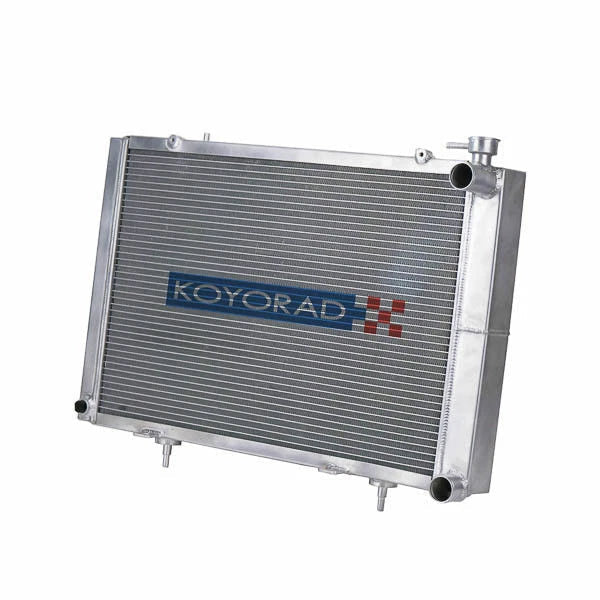

Koyo Performance Radiator - Mazda RX-8 (SE3P) MT - 36mm

Koyorad has built its reputation on aluminium radiators that punch well above their thickness, and the V-Core Series is the proof. Designed for the Mazda RX-8 and its unique 13B-MSP Renesis rotary, this unit (SKU V2695, part number KV061615R) delivers genuine cooling performance in the tight core dimensions the RX-8's engine bay demands.

This listing covers the Mazda RX-8 SE3P (4D Coupe), 1.3L 13B-MSP naturally aspirated rotary, built 2003 to 2008.

Note: This radiator is manual transmission only and does not fit automatic RX-8 models.

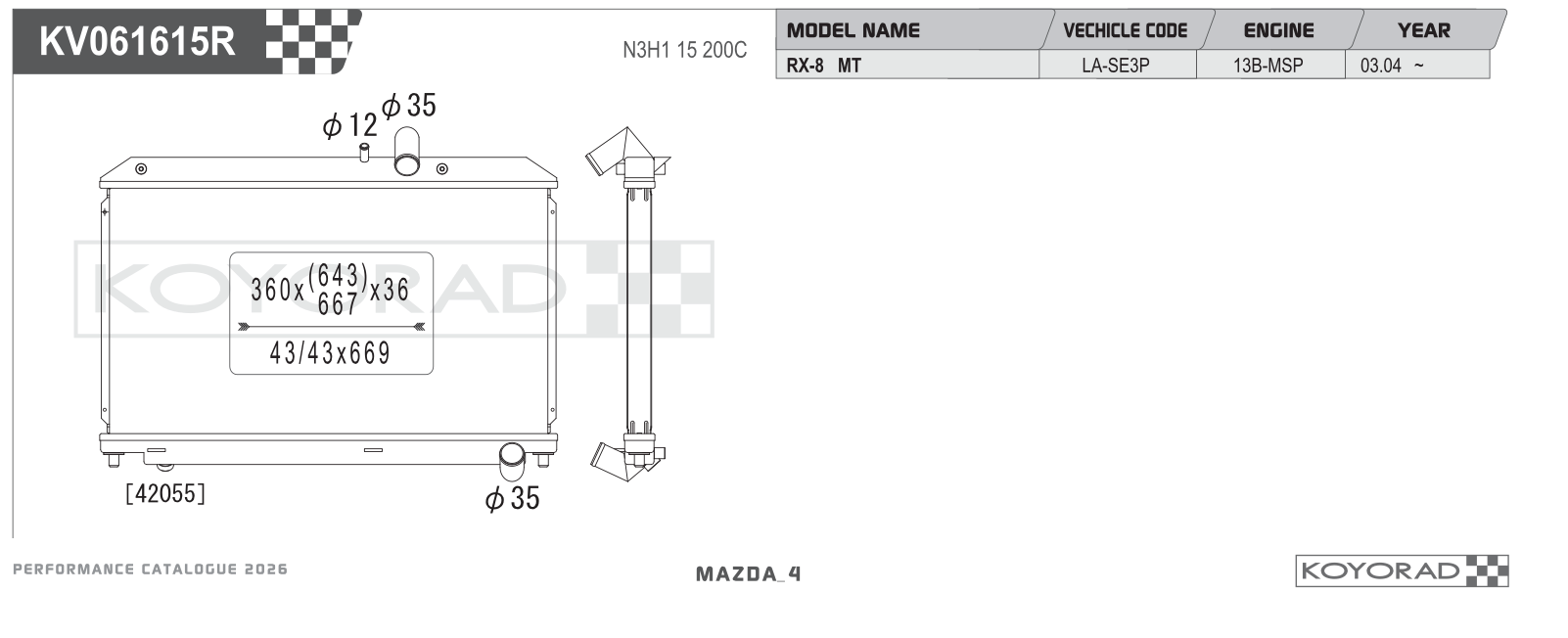

Specifications

• Core type: V-Core, 36mm thickness
• Core dimensions (H x W): 360mm x 643/667mm
• Tube pitch: 43/43 x 669mm
• Inlet: Ø35mm (top), Outlet: Ø35mm (bottom) / Ø12mm (overflow)
• Construction: all aluminium, Nocolok furnace brazed, hand TIG/Heliarc welded
• Billet filler neck, triple pressure tested
• Retains OEM fan shroud mounts and stock hose fitment
• Direct bolt-in, no modifications required
• Sold individually

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please ensure your RX-8's transmission type is confirmed before ordering.

Not sure if this radiator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
