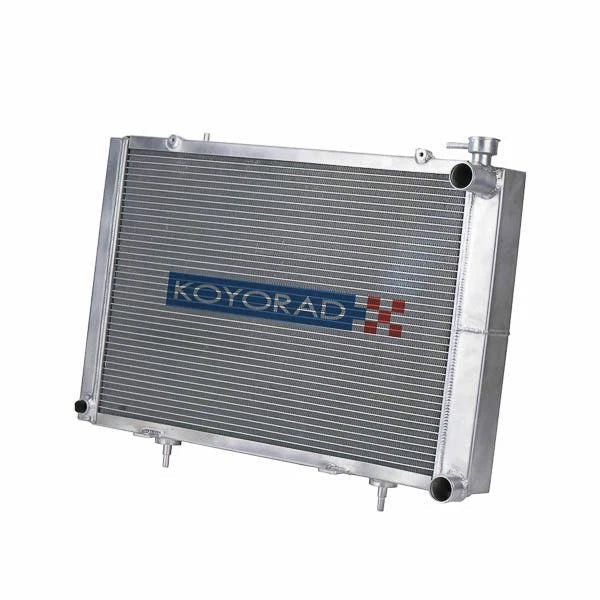

Koyo Performance Radiator - Mazda MX-5 (ND5RC/NDERC) - 2.0L MT

Koyorad builds its Racing Radiator range to genuine performance standards, and this all aluminium unit brings that same thermal capability to the Mazda MX-5. Designed as a direct replacement for the factory radiator, it improves heat rejection without altering the clean factory install.

This listing covers the Mazda MX-5 ND5RC/NDERC 2.0L Manual Transmission model from 2015 onwards. SKU KH063152 retains all OEM fan shroud mounts and hose connections, so no cutting, drilling or hose adapting is required.

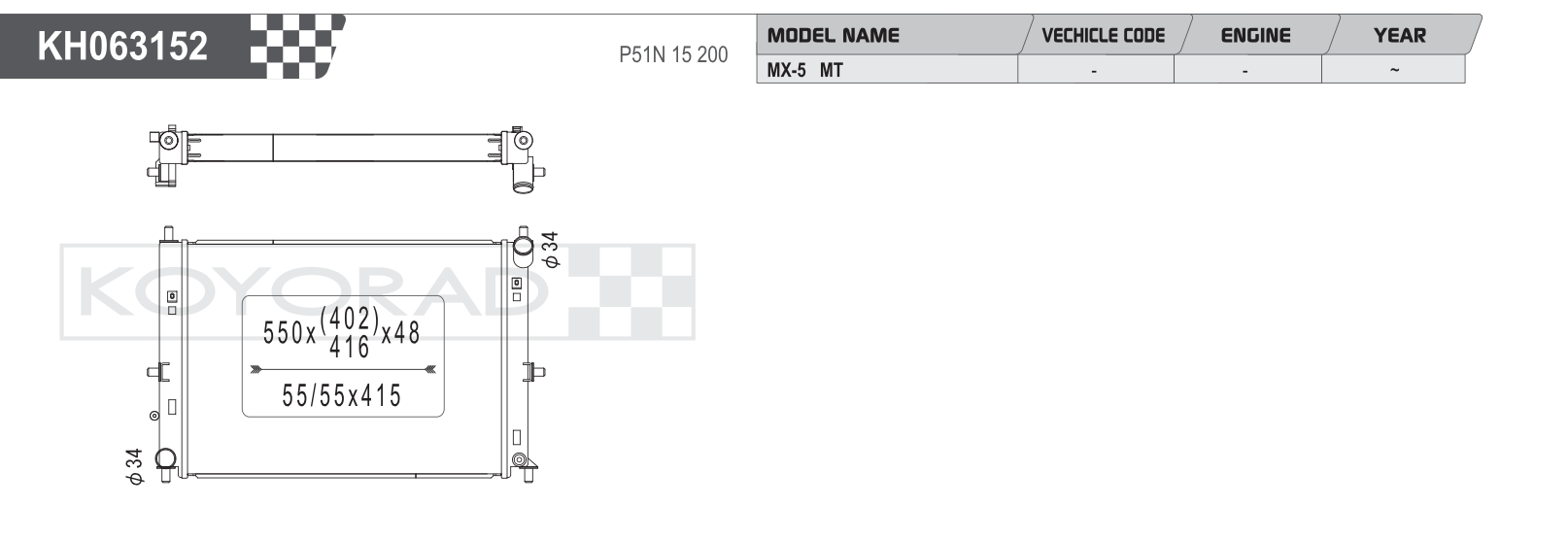

Specifications

• Part Number: KH063152
• Core Thickness: 48mm
• Core Dimensions (H x W): 550 x 402/416mm
• Tube Pitch: 55/55 x 415mm
• Inlet/Outlet Diameter: 34mm (top and bottom)
• Construction: All aluminium, Nocolok furnace brazed, hand TIG welded
• Filler Neck: Precision machined billet aluminium
• Fan Shroud: Retains OEM mounting points
• Hoses: Compatible with stock radiator hoses
• Fitment: Direct bolt in, no modifications required
• Transmission: Manual (MT) only

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your MX-5's model year and transmission type before ordering.

Not sure if this radiator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
