Koyo Performance Radiator - Mazda MX-5 (NB8C) MT

Koyorad builds its Hyper V-Core radiators to cope with the heat load that Australian tracks, mountain roads and summer traffic throw at a factory cooling system. Fitted to the Mazda MX-5, this 36mm core unit is a direct upgrade over the stock radiator, using Nocolok furnace brazing, hand Heliarc welding and a billet filler neck for a stronger, more heat resistant core than OEM. SKU VH060650.

This listing covers the Mazda MX-5 NB8C with manual transmission only, spanning 1.8L aspirated and turbo petrol variants from 1998 to 2005, including the SE and SP turbo models.

Note: Some NB models fitted with air conditioning at the port of entry may require minor adjustment of the condenser mounts to clear this radiator.

Specifications

• Core type: Hyper V-Core, 36mm thickness, 2-row high density

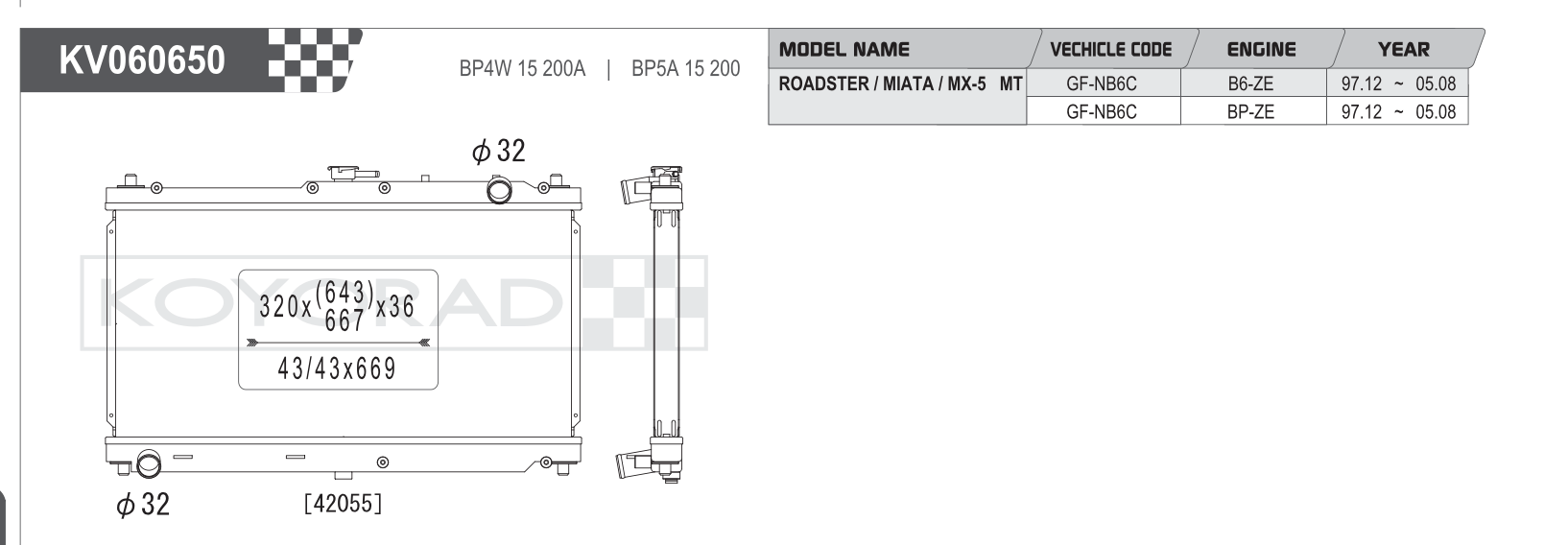

• Core dimensions: 320 x 643/667mm
• Inlet/outlet diameter: 32mm (top and bottom)
• Construction: all aluminium, Nocolok brazed, Heliarc welded, billet filler neck
• Fan shroud: retains OEM mounting points
• Hoses: compatible with stock hose connections
• Fitment: direct bolt-in, no modification required
• Transmission: manual only
• Cross reference: KV060650, Mazda OEM BP4W 15 200A / BP5A 15 200

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please ensure your vehicle's year and transmission configuration are confirmed before ordering.

Not sure if this radiator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
