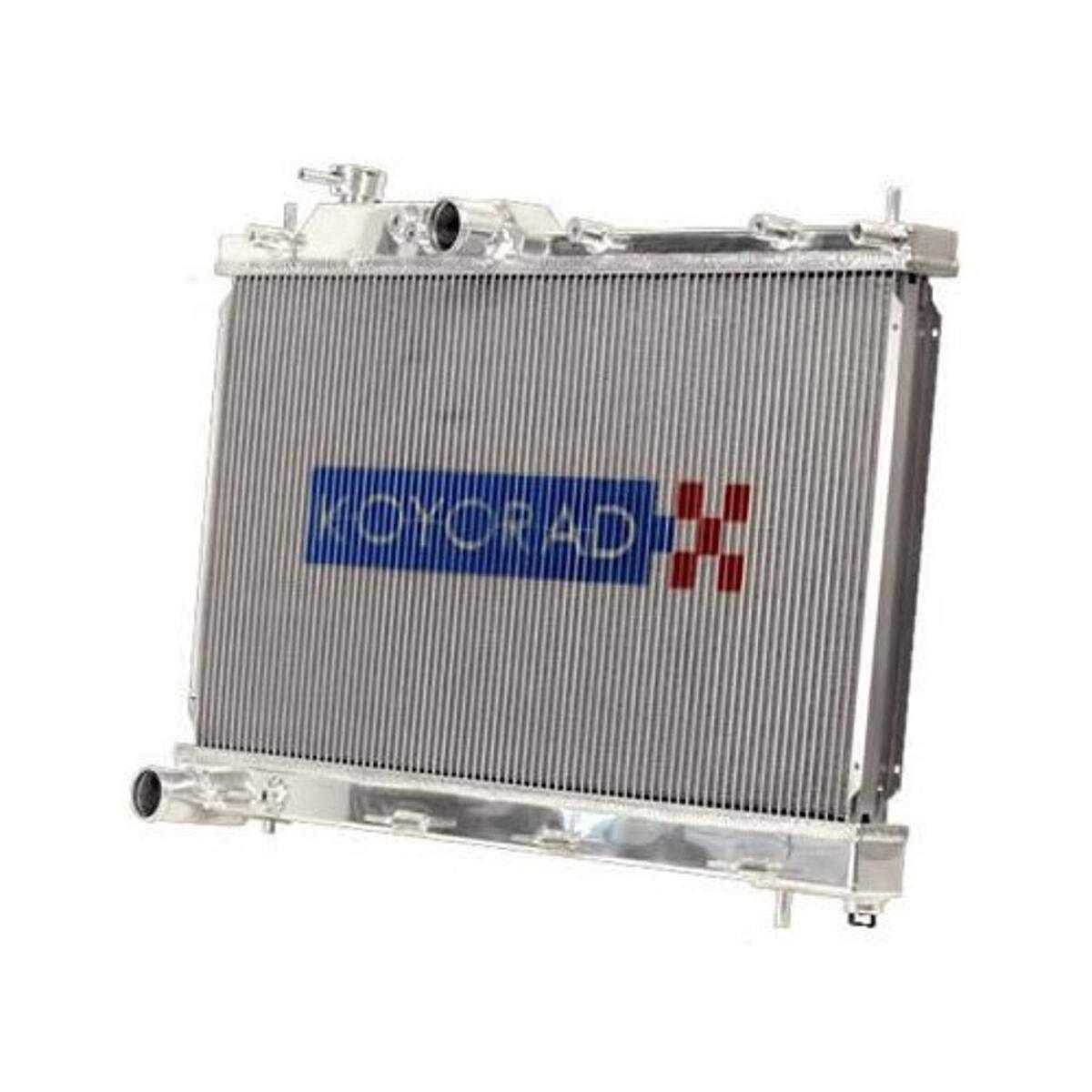

Koyorad Performance Radiator - Honda NSX (NA1/NA2)

Koyorad has been building aluminium radiators for Japan's performance car scene for decades, and this core brings genuine cooling upgrade to the Honda NSX. Nocolok furnace brazed and hand TIG welded, it's engineered to hold coolant temperatures in check when the factory unit starts to struggle under sustained load.

This listing covers the Honda NSX, both NA1 and NA2 chassis, spanning C30A and C32B engine variants from 1990 to 2005. SKU V2032 / KV082303R is a direct bolt-in replacement using the OEM fan shroud mounts and hose connections, so no cutting or fabrication is needed.

Note: This radiator is designed for manual transmission (MT) NSX models only.

Specifications

• Part Number: KV082303R
• SKU: V2032
• Core Thickness: 36mm
• Core Dimensions (H x W): 340 x 686/706mm
• Tank Dimensions: 43/43 x 705mm
• Inlet/Outlet Diameter: 38mm (top and bottom)
• Construction: All aluminium, Nocolok brazed, Heliarc welded by hand
• Transmission: Manual (MT) only
• Fitment: Direct bolt-in, no modifications required
• Cross Reference: Honda OEM 19010 PRZ A03 / 19010 PRZ A04

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your NSX's chassis code and transmission type before ordering.

Not sure if this radiator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
