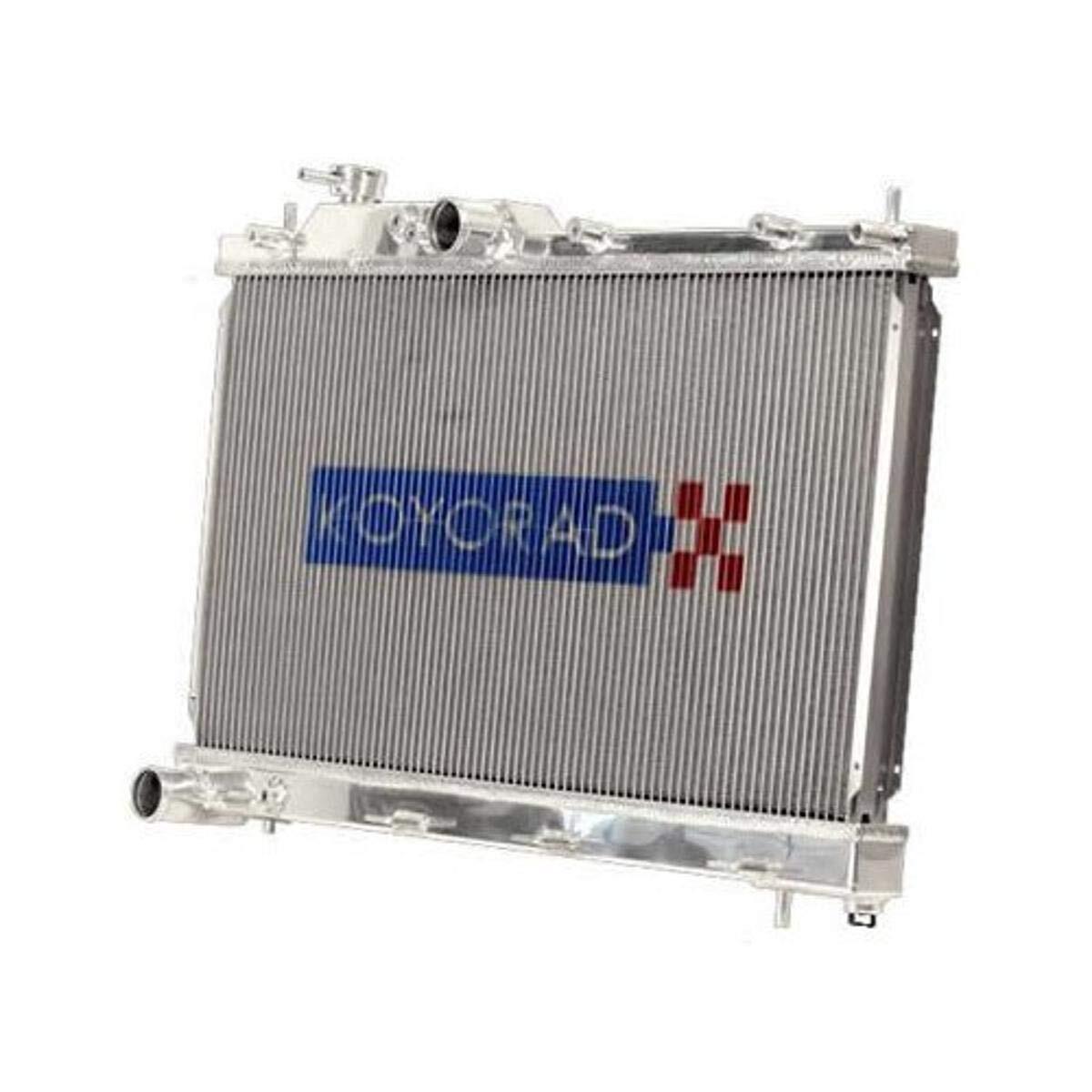

Koyorad Performance Radiator - Honda Integra (DC2) K-Series Swap - Manual Transmission

Koyorad builds its radiators for tuners and swap cars that push well past factory cooling limits, and this unit is purpose engineered for the K-Series swapped Integra. All aluminium construction, Nocolok furnace brazing and hand welded Heliarc joints give it the strength and heat rejection a K20 or K24 swap actually needs.

This listing covers the Honda Integra (DC2) fitted with a K-Series swap (K20A/K24), manual transmission only, model years 1994-2001. It bolts straight into the factory mounting points using stock hose connections, with no cutting or fabrication required.

Note: Manual transmission fitment only. Not designed for auto DC2s.

Specifications

• Part Number (Japan): KV081255U06
• SKU: V081255
• Core Thickness: 36mm
• Core Dimensions (H x W): 620 x 402/412mm
• Tank Dimensions: 43/43 x 420mm
• Inlet/Outlet Diameter: 32mm (top and bottom)
• Drain Plug: M18 x P1.5
• Construction: All aluminium, Nocolok brazed, Heliarc welded
• Billet filler neck fitted as standard
• Sold individually

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your DC2's transmission type and swap configuration before ordering.

Not sure if this radiator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
