Koyo Performance Radiator - Mazda 3 MPS (BL) - 2.3L Turbo MT

Koyorad builds all aluminium radiators to OE fitment specs, using Nocolok furnace brazing and hand done Heliarc welding for a stronger core than the factory unit. For the Mazda 3 MPS, that means better heat rejection when the turbocharged 2.3L is working hard on track or in spirited driving.

This listing covers the Mazda 3 MPS BL 4D hatch, L3VDT 2.3L turbo, manual transmission only, 2009 to 2014. SKU KH062306 / KS062306.

Note: Manual transmission fitment only — does not suit automatic BL MPS variants.

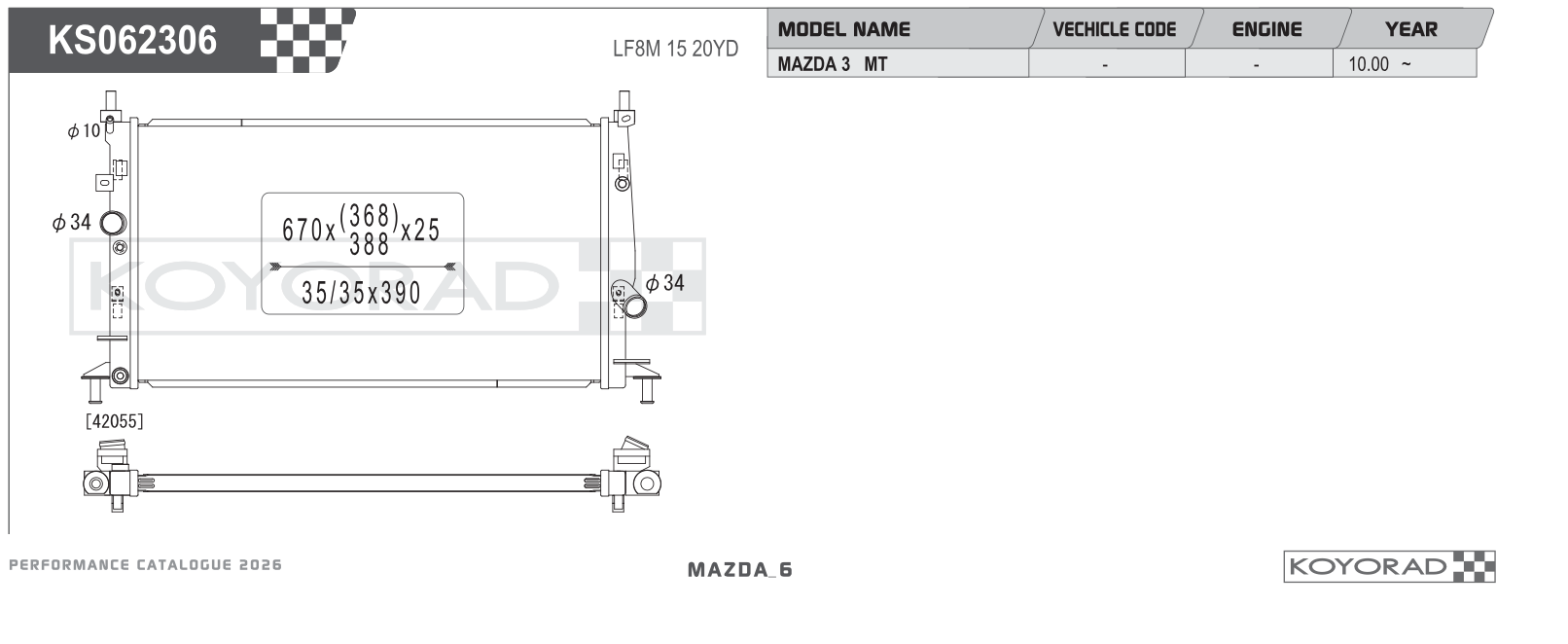

Specifications

• Core thickness: 25mm
• Core dimensions (H x W): 670 x 368/388mm
• Tube pitch: 35/35 x 390mm
• Inlet: Ø34mm (left), Ø10mm overflow
• Outlet: Ø34mm (right)
• Construction: all aluminium, Nocolok brazed, Heliarc welded
• Retains OEM fan shroud mounts and stock hose fitment
• Direct bolt-in, no modifications required
• Sold individually

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your vehicle's year and transmission type before ordering.

Not sure if this radiator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
