Code No. 15004-AF111

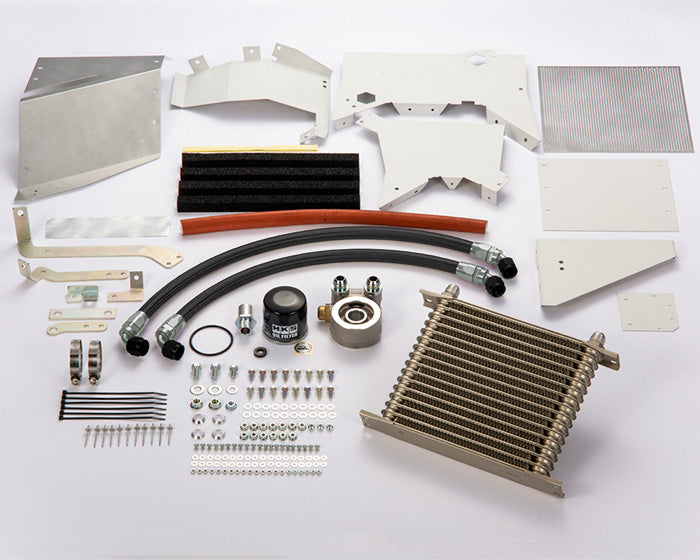

OIL COOLER KIT for VAB WRX STI (VAB)
48mm thick oil cooler mounted on driver side.
Includes air duct that directs cold air through the oil cooler core. After passing through oil cooler core, air exits to the outside through the vents in the wheel arch.
Although its installed in the fender area fog lamps can still be used.
Installation requires modifications of mud guard, under cover, front bumper, air cleaner, horn bracket, exhaust manifold heat insulator.
Prepare 5.5 L of engine oil.
| Vehicle | Model | Engine | Model Year | Core Size・Row | Core Location | Type | Hose Size | Aluminum Air Guide | Oil requirement (L) | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WRX STI | VAB | EJ20 | 14/08 -20/04 | 200x220x48・15 | Inside right bumper | S type | #10 | ○ | 5.5 | 15004-AF111 |  |
Time Required: 6 hours. E/G Oil Reguired: 5.5l. S type Intercooler, #10 Hose size, Aluminum Air guide. EJ20 Only. |
