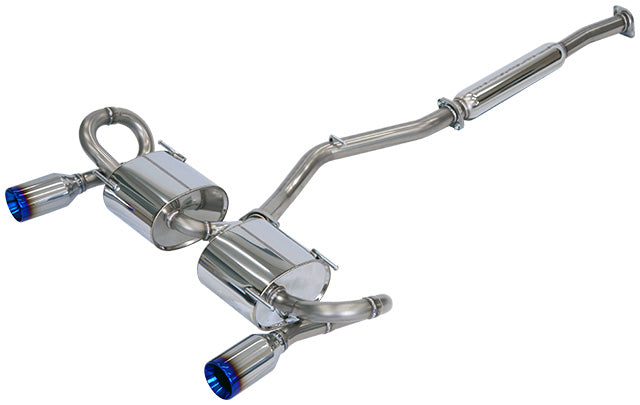

Code No. 32018-AF019
High-performance muffler having both quietness and low back pressure.
Optimized special design for FA24
A sporty sound comes from a characteristic layout
| Cert. No. | JQR30223037 |
|---|
| Vehicle | BRZ |
|---|---|
| Model | ZD8 |
| Engine | FA24 |
| Model Year | 21/08 - |
| Shape of muffler | RS (Titan) (LEGAMAX Sports) |
|
|---|---|---|
| Main material | S304 | |
| Diameter of tip | 100 L&R | |
| Diameter of center pipe | 65-50 x 2 (*1) | |
| Close noise level | Stock | 83 |
| HKS | 89 | |
| About road clearance(*2) | Clearance | 132mm |
| Portion of the kit | 2nd Middle pipe | |
| Remarks | ||
| Product Weight | ||
Compatible with Applied Model A-E.
Attaching/detaching of rear bumper, and modification of rear bumper skirt is necessary when installing the product.
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
