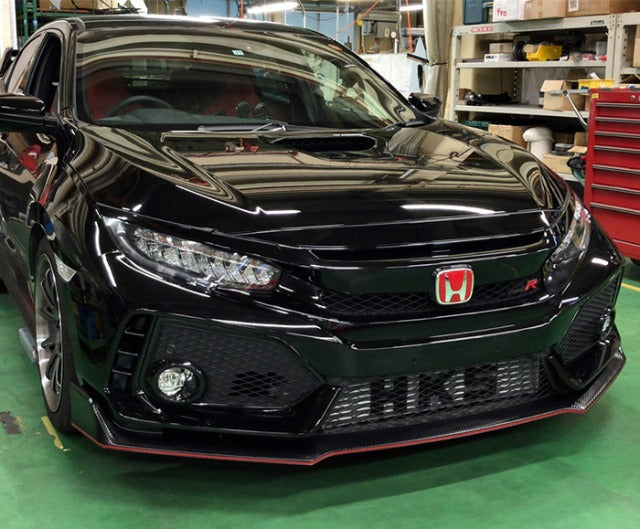

HKS R TYPE INTERCOOLER KIT - HONDA CIVIC FK8 TYPE-R

Description

Description

CIVIC TYPE RÂ FK8

Code No. 13001-AH004

Best Layout with Best Core Size Designed for the Fastest FF CIVIC TYPE-R(FK8).

CONCEPT

The K20C engine achieves 320ps with 2.0L displacement, and the boost pressure exceeds 150kPa. Since the stock intercoolers capacity is insufficient, the engine intake air temperature rises to nearly 90
HKS intercooler is using a larger size intercooler to maintain cooling performance.
The stock intercooler piping layout has a sharp bend so the intake air does not flow smoothly and causes the boost pressure loss.
HKS intercooler integrates the inlet side tank of the intercooler and pipe to realize a smooth air flow and reduce air intake loss.

Features

Newly designed 100mm wide core is approximately 200% of the stock in the core capacity. This large core shows overwhelming cooling performance difference.
Core Size HKS 695mm x 178mm x 100mmStock680mm x 143mm x 64mm
Minor modification of the fan shroud and rubber part that comes in contact with the core is required.

Test Data

Vehicle	Model	Engine	Model Year	Type	Core Sizeã»Location	Type	Code No.	Manual	Remarks
Vehicle	Model	Engine	Model Year	Type	Core Sizeã»Location	Type	Code No.	Manual	Remarks	CIVIC TYPE R	FK8	K20C	17/09 -22/08	R type INTERCOOLER	695x178x100	R type	13001-AH004		Installation requires approx. 4 hours. IN & OUT pipes included.
