Code No. 13001-AH008
R TYPE INTERCOOLER KIT for CIVIC TYPE-R FL5

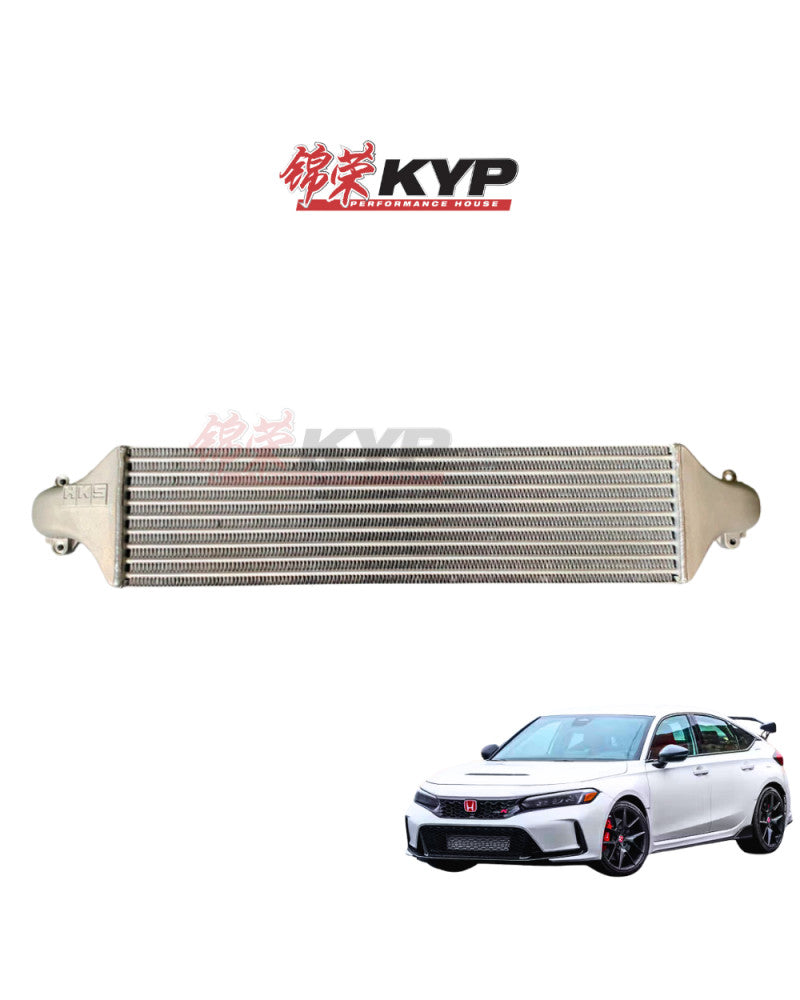

Intercooler Core
[Core Only]
【パイピングキット】

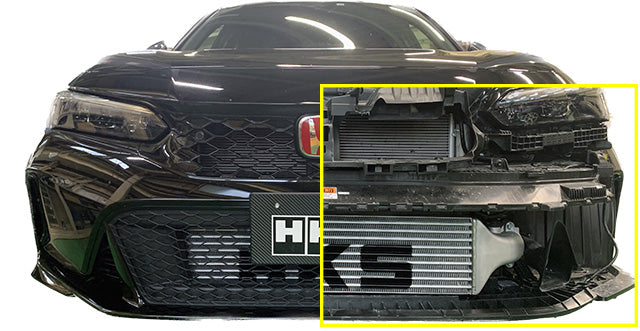

*1. To install the intercooler ASSY, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. No modification of the reinforcement is required.
*2. To install the piping, it is necessary to shave the bracket on the vehicle body.

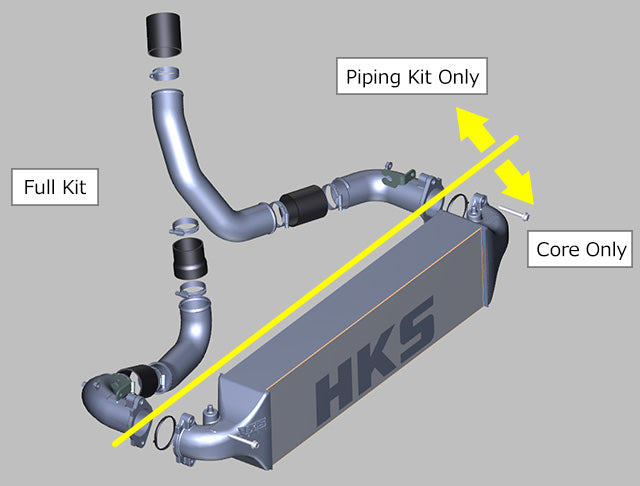

*3. For the FULL KIT, *1 and *2 must be met.
| HKS | Stock | |
| Exterior |
|
|
| Material & Specs |
Core Size: 695 x 178 x 100 Core specs: 10 fins, 9 Tubes Tank: Aluminum cast |
Core Size: 639 x 158 x 64 Core specs: 11 fins, 10 Tubes Tank: Resin |
| Performance Data |
Power: 245[kW](333[PS]/6500[rpm] Torque: 449.5[Ｎ・m] (45.9[kg・m]）/3260[rpm] Cooling performance: I/C outlet 30.3℃ (7000[rpm]) Cooling efficiency: 88%(7000[rpm]) |
Power: 243[kW](331[PS]/6420[rpm] Torque: 445.8[Ｎ・m] (45.5[kg・m]）/3360[rpm] Cooling performance: I/C出口56.0℃ (7000[rpm]) Cooling efficiency: 67%(7000[rpm]) |
| Vehicle | Model | Engine | Model Year | Type | Core Size・Location | Type | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|---|---|---|
| CIVIC TYPE R | FL5 | K20C | 22/09 - | R type INTERCOOLER | 695×178×100・Front mount (Factory replacement) | R type | 13001-AH008 |  |
*Core ONLY Installation requires approx. 1.5 hours. |
