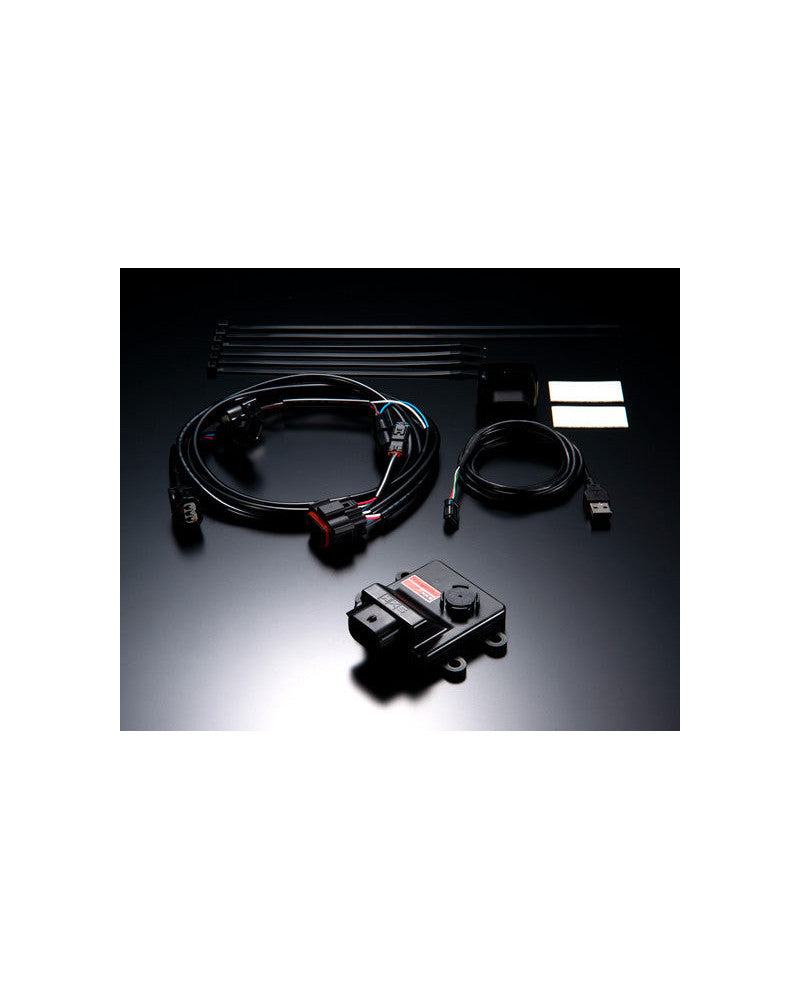

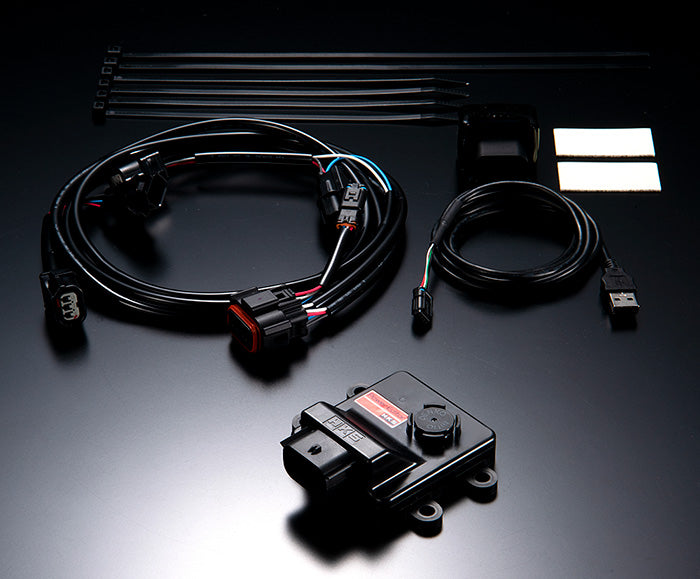

Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.

■Outline

• Easy plug and play installation to increase the boost pressure.
• Boost pressure increase data is preset to Power Editor.
• A bypass connector is included. It allows to bypass the unit even after connecting this kit.
• Easy Writer for Power Editor can edit the preset data.
  Note: Easy Writer is NOT included in the product. Use provided USB cable to connect to computer.

■Main Functions

• Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
• Status indicating LED: Checking the unit status by LED.
• Edit the boost increase data: Editing the preset data to the user's original data to increase the boost pressure.
  Note: PC with Windows is required.

■Features

• Install this Power Editor between "pressure sensor" and "pressure sensor harness" can increase the boost pressure.
• Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
• Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.

Easy Writer for Power Editor

■Note

• This product is applicable to a stock vehicles and vehicles equipped with HKS products.
• This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.

■Preset data

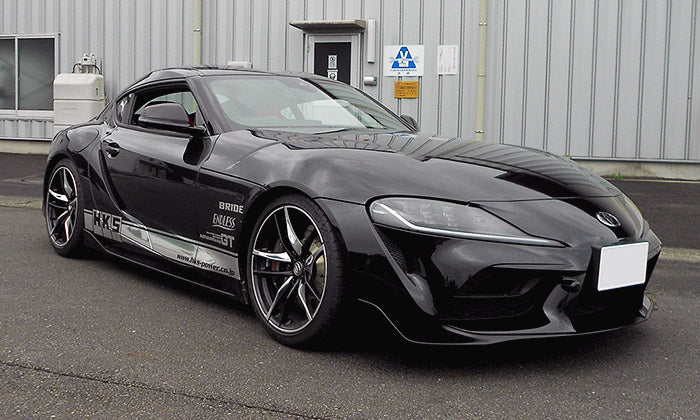

● TOYOTA SUPRA RZ [DB42]　JDM SPEC

● Installed parts when the data measured   Super Turbo Muffler / Dry Carbon Racing Suction

■Performance

※当社車両を当社シャシダイナモにて計測した数値の為、気象条件や車両個体差、計測機器などで異なります。

■Recommended Power Editor installation location and Pressure sensor location
