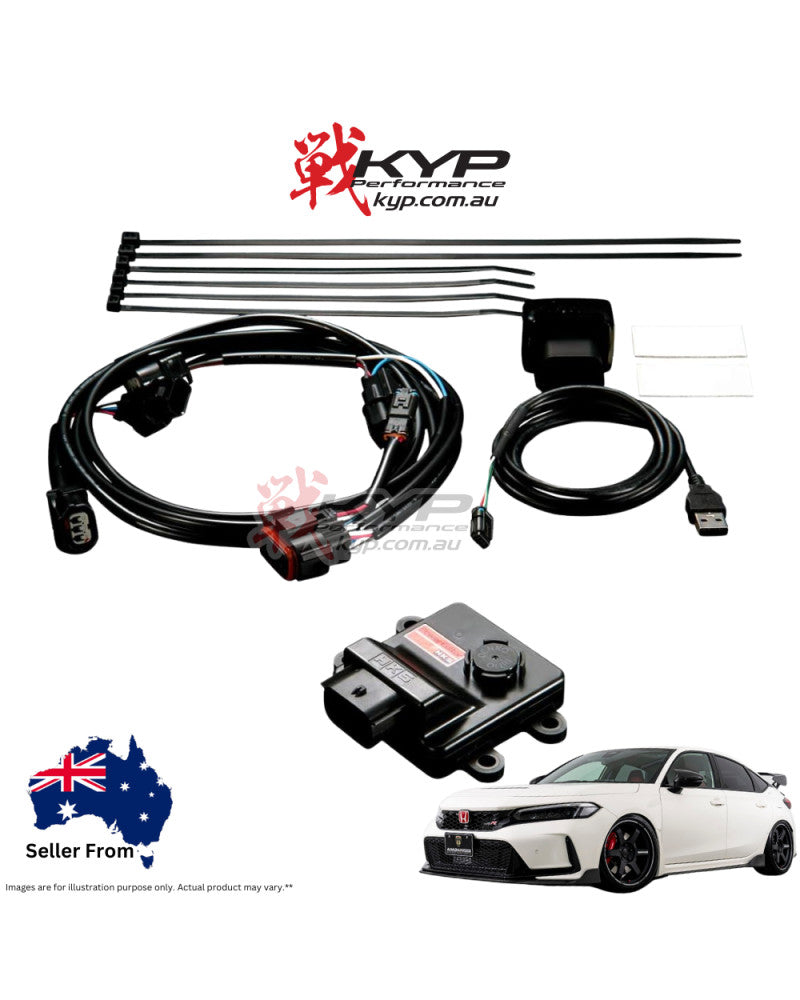

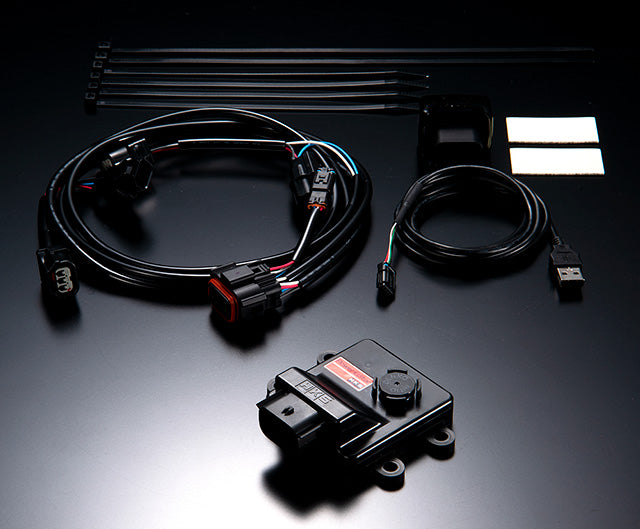

Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.

■Outline

• Easy plug and play installation to increase the boost pressure.
• Boost pressure increase data is preset to Power Editor.
• A bypass connector is included. It allows to bypass the unit even after connecting this kit.
• Easy Writer for Power Editor can edit the preset data.

Note:
Easy Writer is NOT included in the product.
Use provided USB cable to connect to computer.

■Main Function

• Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
• Status indicating LED: Checking the unit status by LED.
• Edit the boost increase data: Editing the preset data to the user's original data to increase the boost pressure.
  Note: PC with Windows is required.

■Features

• Install this Power Editor between "pressure sensor" and "pressure sensor harness" can increase the boost pressure.
• Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
• Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.

Note:
- This product is applicable to a stock vehicles and vehicles equipped　with HKS products.
- This product is for a stock ECU data and not available to use with a customized data prepared by a Reflash tool.

Easy Writer for Power Editor

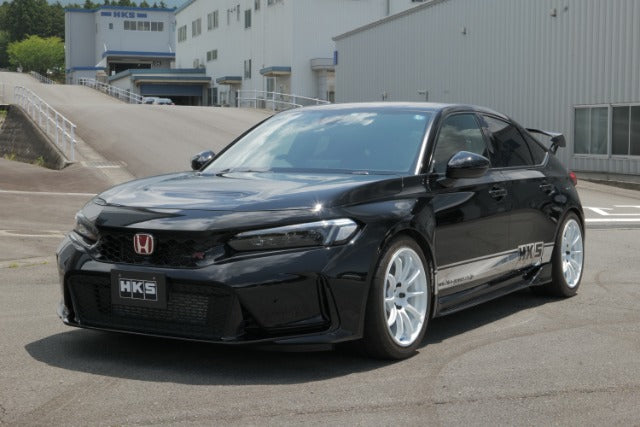

■Specification of Test car

• HONDA CIVIC Type R FL5 (JDM)

■Performance Data

Vehicle	Classification	Model	Engine	Model Year	Code No.	Manual	Remarks
CIVIC TYPE R		FL5	K20C	22/09 -	42018-AH013
