Code No. 13002-AH002

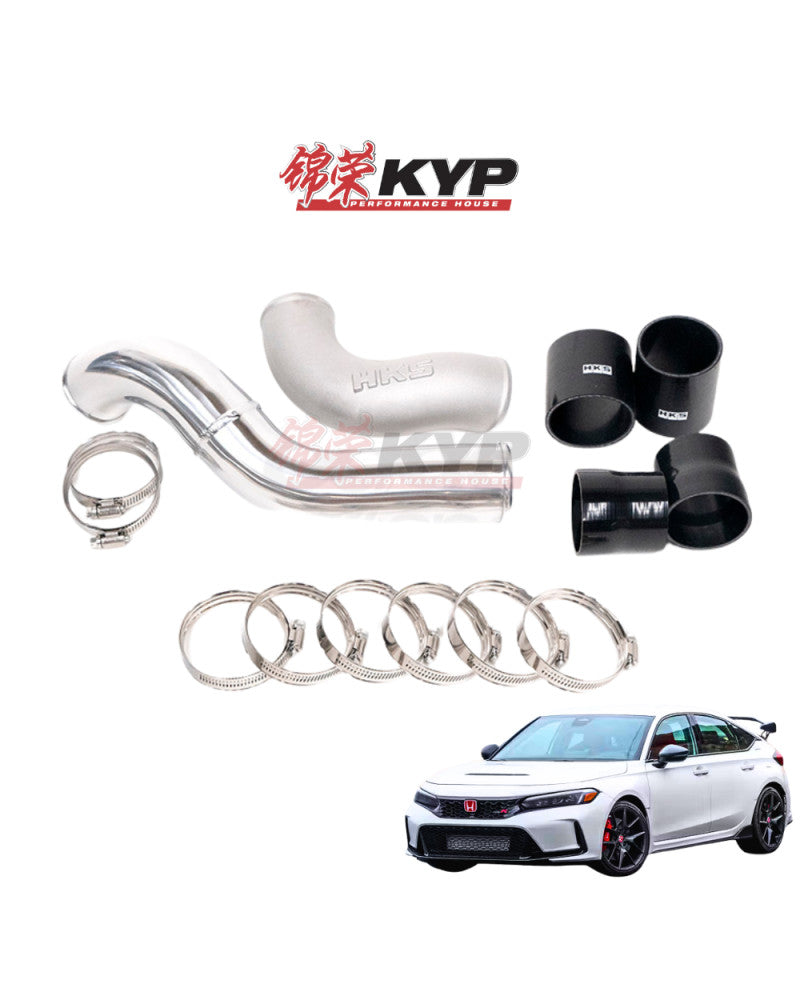

PIPING KIT for CIVIC TYPE-R FL5
Piping Kit
[Piping Kit Only]
[Full Kit]

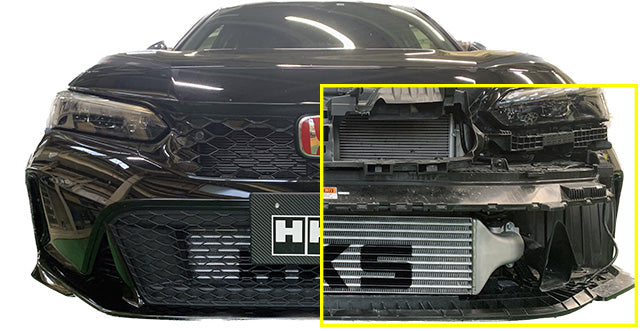

*1. To install the intercooler ASSY, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. No modification of the reinforcement is required.
*2. To install the piping, it is necessary to shave the bracket on the vehicle body.
*3. For the FULL KIT, *1 and *2 must be met.
| HKS | Stock | |
| Exterior |  |
 |
| Material & specs | in No.1：Aliminum bent pipe (inner diameter D60) in No.2：Aliminum casting (bracket separate) out No.1：Aliminum casting (bracket separate) out No.2：Aliminum bent pipe |
in No.1：Rubber hose (inner diameter D55) in No.2：Aliminum casting (bracket separate) out No.1：Resin (with bracket) out No.2：Rubber hose |
| Vehicle | Model | Engine | Model Year | Type | Number of pipes | Code No. | Manual | Remarks | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Suction pipe | In pipe | Out pipe | Recirculation pipe | Super power flow | ||||||||
| CIVIC TYPE R | FL5 | K20C | 22/09 - | IC | 2 | 2 | 13002-AH002 |  |
Piping Kit Installation requires approx. 2.5 hours. |
|||
