Code No. 15004-AT113
Â
Â
Allows oil temperature management required for high power.
Without Bumper
With Bumper

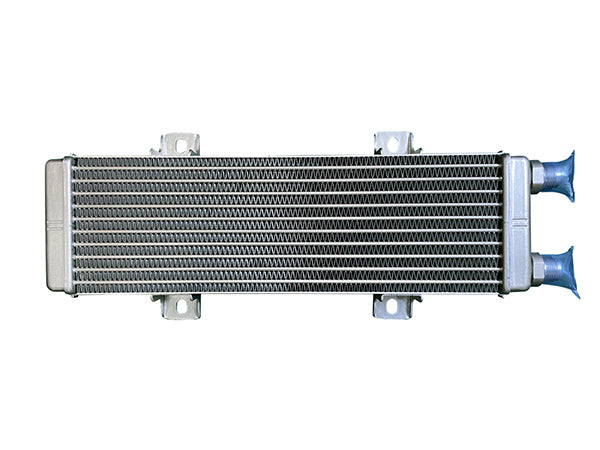

Oil Cooler Core

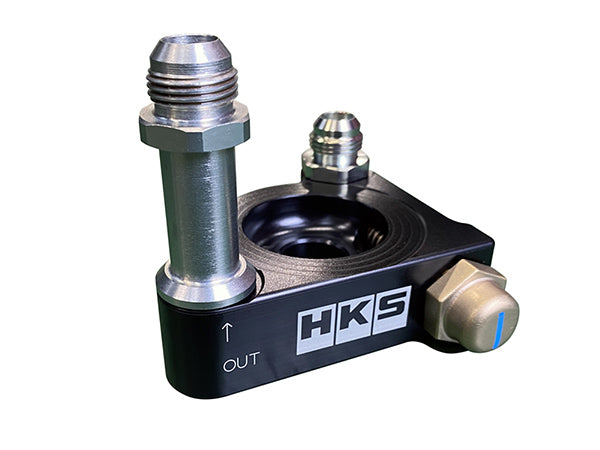

Billet Aluminum Sandwich Plate
Â

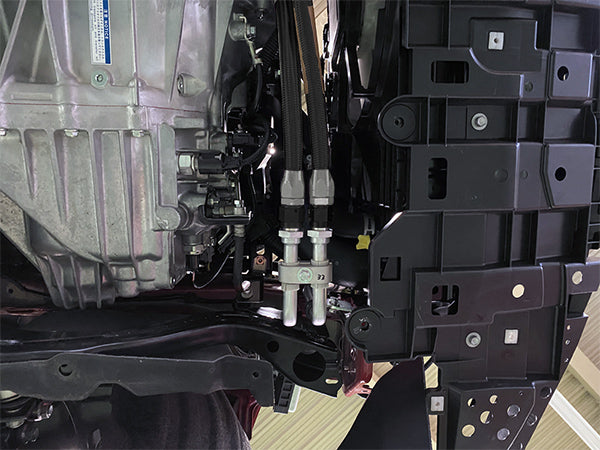

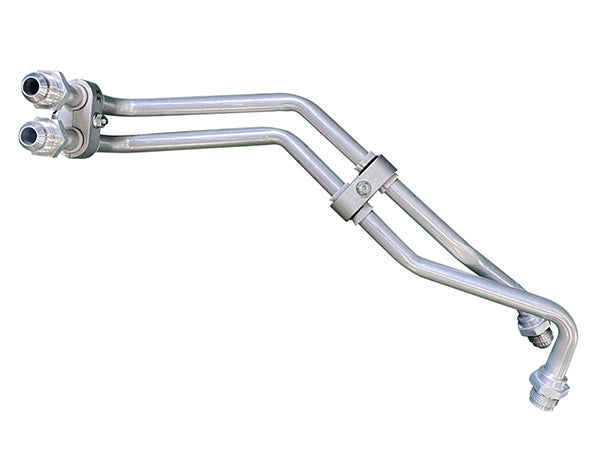

Oil Cooler Pipe
Oil Cooler Hose (#AN10)
| Track Name | FSW Short Course |
| Surface | Asphalt |
| Length | 810m~920m |
| Turms | 4~8 |
| Temperature | 25â |
| Suspension | HIPERMAX S |
| Exhaust | SUPER TURBO MUFFLER |
| Intake | HKS Cold Air Intake System |
| ECU | Power Editor |
| Turbo | Stock |
| Intercooler | HKS Intercooler Kit |
| Oil | HKS SUPER OIL Premium 0W-20 |

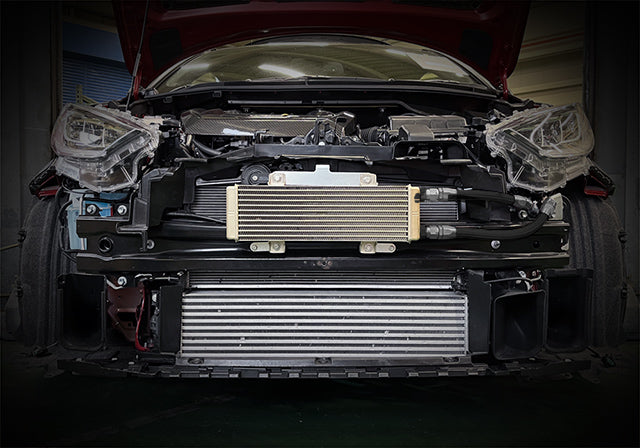

HKS has tested various ways that the danger of high chronic oil temperatures raises with GR Yaris, and HKS has developed a Turn-Flow Type oil cooler that allows continuous track driving. This provides competent oil management and continuous sustained performance.
The tests showed a clear high level of oil management, with about four times as many hours/miles driven in stock conditions. Authentic tests using real vehicles prove the high standards of HKS product.Â
| Vehicle | Model | Engine | Model Year | Core Sizeã»Row | Core Location | Type | Hose Size | Aluminum Air Guide | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GR YARIS | GXPA16 | G16E-GTS | 20/09 -24/03 | 412Ã114Ã40ã»10 (turn flow) | In front of the radiator | S type | #10 | 15004-AT113 |  | Standard Installation Time: 5~6 hours. Check the oil gauge and adjust the oil level to the correct level. |
