Code No. 15004-AH104

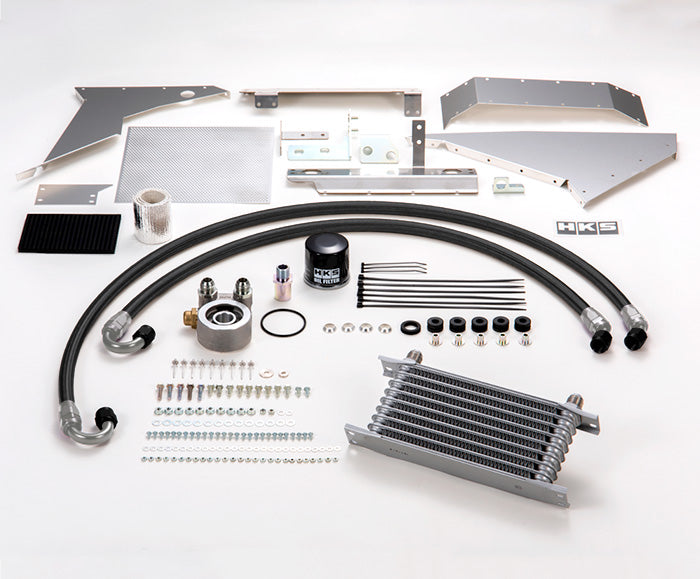

Oil Cooler Kit with Optimum Core Size and Layout Design.
The kit for the fastest FF model CIVIC TYPE-R(FK8) is released.
The K20C engine generates 320ps with 2.0 displacement; therefore, the vehicle is equipped with a water-cooled oil cooler to stabilize the extreme high engine output. However, under circuit driving, the temperature of both oil and water rise sharply because adequate heat radiation cannot be obtained, and fail safe mode becomes activated.
Adding HKS air cooling type oil cooler kit provides high heat exchange efficiency to suppress the temperature rise not only of the oil but also the water. HKS oil cooler kit includes a special aluminum air guide.
Core Installation Position
Insulator to reduce the oil pump operation noise.
Thermostat
| Vehicle | Model | Engine | Model Year | Core Size・Row | Core Location | Type | Hose Size | Aluminum Air Guide | Oil requirement (L) | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CIVIC TYPE R | FK8 | K20C | 17/09 -20/09 | 200x122.5x48・9 | Inside right fender | S type | #10 | ○ | 5.9 | 15004-AH104 |  |
*Not compatible with vehicles equipped with Honda Sensing®. *Standard Installation Time: 4 hours *Aluminum air guide is included. |
