| Brand |
HKS
|
| Series Name |
OIL COOLER KIT BLACK
|
| Product Number |
15004-AH105
|
| Compatible Car |
HONDA CIVIC TYPE R FL5
|
| Compatible Engine |
K20C
|
| Product Description |
+R mode continuous high loads can be achievedwith this oil cooler kit, which uses the HKS approach to optimize the heat countermeasures for the FL5.

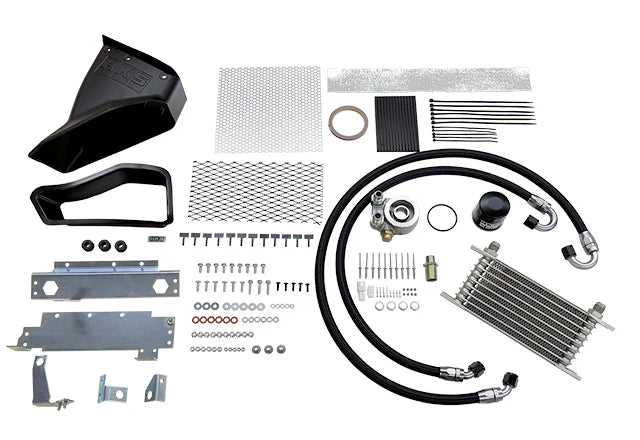

"Air ducts that do not disrupt the design of the front mask" "Directly introduce fresh air" "Smoothly discharges cooled air to achieve optimal airflow for the entire system" An outlet plate is included to prevent damage to the core from flying stones, etc.) ■Component parts overview Oil cooler core Air duct (unpainted resin) air intake duct Outlet Plate Mounting bracket #10 Oil Hose Thermostat housing Oil filter Short parts ■ Optional parts Dry carbon air duct (clear painted and metal net attached) - Sold Separately Core size/WxHxD・Number of stages : 200x122.5x48・9 Core mounting position : Inside the left fenderHose Size: #10 Aluminum Air Guide: Resin Compatible Vehicle : HONDA CIVIC TYPE-R (6BA-FL5) Model Year : 2022/9~ |
| Remarks |
Standard installation time: 6 hours
When replacing the oil filter, use HKS OIL FILTER TYPE 1 (52009-AK005). It is necessary to modify the factory parts.●Front bumper●Inner Fender LH ●Parking sensor harness The included Duct air 1(P10) is unpainted. To improve the durability of the resin parts, painting is recommended. Separately required parts ●Wire (for fixing heat shield tape) ●Paint (for painting Air Duct 1) *Genuine color number is listed in this book ●Polypropylene adhesive that can be bonded (for fixing air Duct 1 and Metal clip) Separately required tools ●Riveter (for fixing the Plate punched) ●Air saw, ultrasonic cutting machine, hot cutter (for bumper processing) Option Products (Sold separately) ●Carbon Air Duct 15999-AH001 |
| Notes |
Images are for illustration purpose only. Actual product may vary.
|
