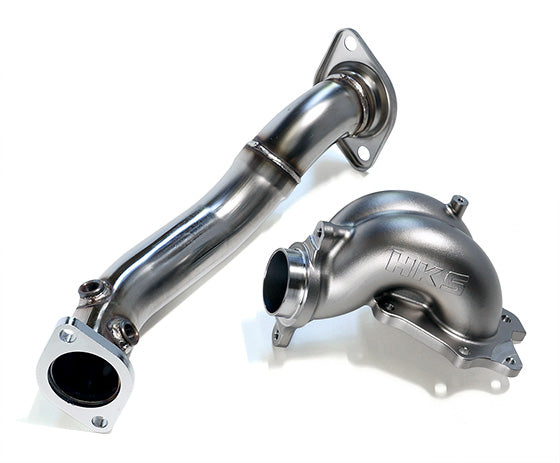

HKS GT EXTENSION KIT For MITSUBISHI LANCER EVOLUTION CZ4A X 4B11 14019-AM002 EVOX EVO10

$1,599.00

Tax Included

Brand: HKS

Availability: In Stock

SKU: 14019-AM002

Qty:

Tags: evolution , hks , mitsubishi

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

LANCER EVOLUTION X CZ4A

Code No. 14019-AM002

The key item of exhaust back pressure control with knowhow of HKS CZ200S (CZ4A).
Maximization of performance from stock turbine is the concept of the product.
Extension portion and Front Pipe portion are connected with a flexible joint.
It improves "durability" that is an important factor of tuning.
It offers new tuning possibility for EVO X.

◆Features

As stock turbine is small, it has good response at low rpm. At high rpm, due to exhaust resistance, feeling will be worse. By improved exhaust efficiency, boost pressure will increase earlier at low rpm and power & torque will be increased for whole rpm range up to high rpm.
CAD designed complicated but ideal shape is manufactured with lost wax casting. Since lost wax casting items do not have welding portion, there is no problem of cracking by heat and the smooth surface guides exhaust gas flow smoothly.
The turbine outlet is 2 ports independent shape for swing valve side and turbine impeller side to reduce resistance due to interference of gas.
For street use, connection of extension and Front Pipe is flexible joint type like stock system to reduce vibration and to improve durability.
Even lower side exhaust part is hit, it prevents damage to the engine or turbine.

Component		Qty
Extension		1
Front pipe		1
Stud Bolt	(M10)	1
Flange Nut	(M10)	1
Plain Washer	(M10)	1
O2 Sensor Bolt		1
Gasket		1
Manual		1

	STD	HKS	Remark
Volume of extension	3.273 X 105	4.103 X 105	About 25％ UP
Inner diameter of outlet	φ57	φ59	About 10％ UP
Manufacturing method	Casting	lost wax
Thickness	4mm	3mm
Material		SUS304
Close noise level	silent HPmuffler+ metal catalyser (R:93 / L:92dB)

"Hosepower" & "Torque" increased at entire rpm range!!

Twin port VS Single por

win ports type increase boost pressure level quicker!!

Reduce exhaust back pressure reduces load on engine
and stabilized performance!!

Vehicle	Model	Engine	Model Year	Pipe dia.			Code No.	Manual	Remarks
Vehicle	Model	Engine	Model Year	Main	Bypass	Front	Code No.	Manual	Remarks
LANCER EVOLUTION X	CZ4A	4B11	07/10 -15/09	φ62		φ65	14019-AM002		Make to order item Available for both SST and 5MT, twin port spec, come with sensor boss.
