Code No. 31021-AT003

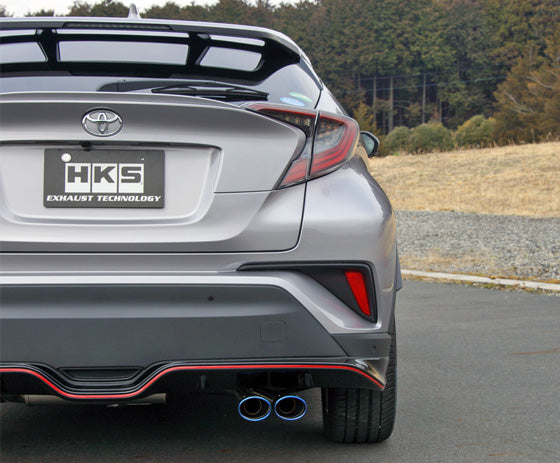

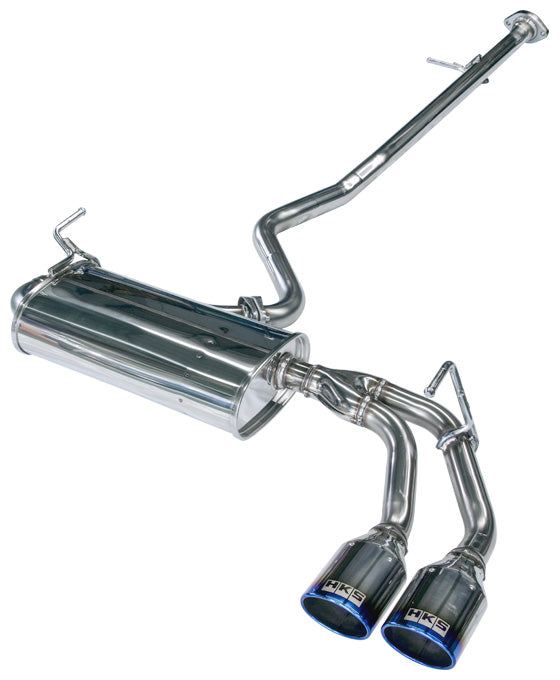

Transform the ordinary genuine exhaust system into a stylish appearance with impressive titanium exhaust tips positioned on the right side.
This product matches with C-HR's unique appearance.
Unpleasant exhaust resonance was eliminated. Comfortable driving can be experienced.
The exhaust doesn't sound out of place when the engine fires up while the car is moving.
Sporty exhaust sound distinguished from the original sound is created once the accelerator is stepped on.
| Cert. No. | JQR10172060 |
|---|
| Vehicle | C-HR |
|---|---|
| Model | NGX50 |
| Engine | 8NR-FTS |
| Model Year | 16/12 - 23/07 |
| Shape of muffler | KC-1 (Titan) (LEGAMAX Premium) |
|
|---|---|---|
| Main material | S304 | |
| Diameter of tip | 94OVAL x 2 | |
| Diameter of center pipe | 45 (*1) | |
| Close noise level | Stock | 71 |
| HKS | 86 | |
| About road clearance(*2) | Clearance | 155mm |
| Portion of the kit | Stock undercover | |
| Remarks | EX Pipe Ground Clearance 190mm (Mid-Pipe) | |
| Product Weight | 9.8kg | |
* To be discontinued. 4WD Turbo, for vehicles with stock rear bumper garnish
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
