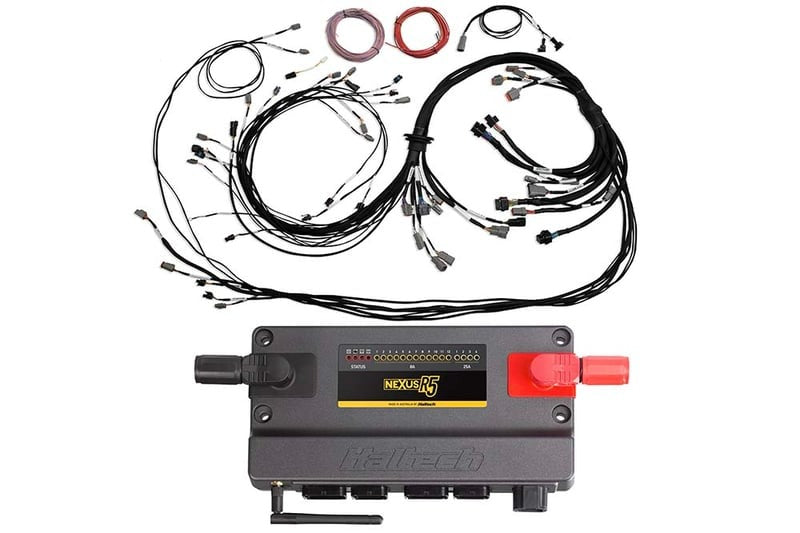

Nexus R5 ECU + Universal V8 Terminated Harness Includes: 1 x HT-195000 - Nexus R5 ECU 1 x HT-186200 - Universal V8 Terminated Harness Notes: Does not include , Ignition , injection and alternator adaptor harnesses sold separately

VCU OVERVIEW

Nexus R5 is Haltech's flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).

4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)

12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)

18 x peak/hold injector drivers (can be used as low side drive outputs)

12 x low current ignition outputs (can be used as low side drive outputs)

8 x low side drive outputs, PWM capable (DPOs)

4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle

23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup

Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters

10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs

2 x onboard wideband controllers, supporting NTK and LSU4.9

3 x CAN ports with switchable termination

Terminated Engine Harness connects directly to the Nexus R5 VCU and supports most popular big block and small block V8 engines from GM, Ford and Chrysler.

Harness requires Injection, Ignition and alternator Sub Harnesses - Sold seperately.

Injector breakouts

HT-186000 V8 Primary Injector EV1

HT-186001 V8 Secondary Injector EV1

HT-186002 V8 Primary Injector USCAR

HT-186003 V8 Secondary Injector USCAR

Ignition breakouts

HT-186060 Nexus V8 GM/Chrysler IGN1A

HT-186061 Nexus V8 Ford IGN1A

Alternator breakouts

HT-186123 GM LS 2-Pin Bosch Alternator Harness

HT-186124 GM LS 4-Pin Delco Alternator Harness

HT-186125 GM LS 2-Pin Yazaki Alternator Harness
