Suits: Holden Commodore VN-VP V6 (DFI module), automatic and manual transmissions Holden Commodore VN-VP V8 (Distributor), automatic and manual transmissions Holden Commodore VR-VS V8 (Distributor), manual transmissions only; Does not support VS Series III Holden Commodore VR V6 (DFI module), manual transmission only

Includes: Nexus Plug-in ECU, Air temperature + Wideband expansion harness 2.5m (8') and spare pins, Air temperature sensor (1/8 NPT), Mounting hardware, vacuum hose, T-piece, USB cable, Quick Start Guide.

Get up and running quickly using the intuitive Nexus Set-up Wizard.

Connects directly via Bluetooth to the Haltech Connect App for easy adjustments and monitoring.

Expand your functionality easily with the optional expansion harness and CAN devices.

Supplied with mounting bracket for ease of fitment.

• Holden Commodore VN-VP V6 (DFI module), automatic and manual transmissions
• Holden Commodore VN-VP V8 (Distributor), automatic and manual transmissions
• Holden Commodore VR-VS V8 (Distributor), manual transmissions only; Does not support VS Series III
• Holden Commodore VR V6 (DFI module), manual transmission only

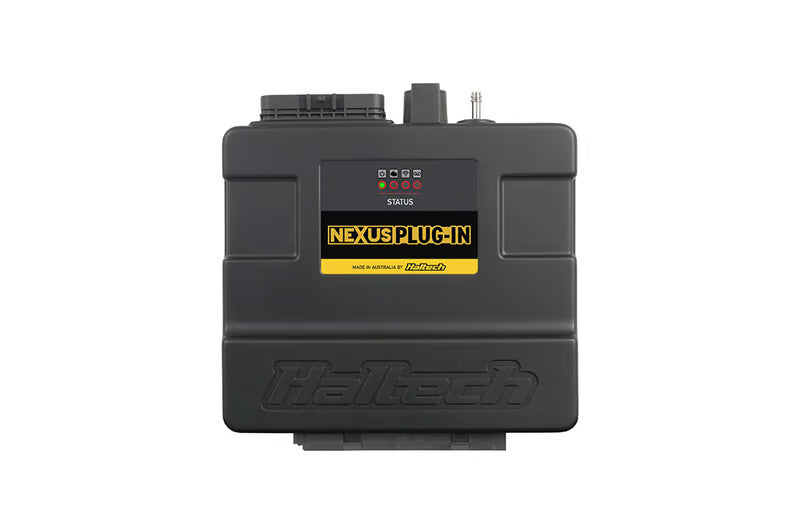

• Nexus GM Delco ECU
• Air temperature + Wideband expansion harness 2.5m (8')
• Air temperature sensor (1/8' NPT)
• Aluminium weld on fitting for air temperature sensor
• Mounting bracket and hardware
• 3mm Vacuum hose 2.5m (8')
• 3mm Aluminium Vacuum T piece
• Haltech USB-C cable
• Quick start guide

AUXILIARY CONNECTOR

• Single Channel Onboard Wideband Control - Supports LSU4.9/NTK
• Wi-Fi
• Long term learning
• 4 channel onboard oscilloscope
• Data logging 128MB
• Flex Fuel
• Closed Loop O2 Control
• Knock Control
• Advanced torque management
• Engine Protection
• Idle stepper motor control
• 4 X Digital Pulsed Outputs
• 4 X Synchronised Pulsed Inputs
• 4 X Analogue Voltage Inputs
• 1 X Onboard Wideband
• 2 X Sensor Ground
• 2 x 12V Output
• 2 x 5V Output
• DFI module + factory coil packs (V6)
• Ignition module + distributor
• Ignition bypass signal
• Multi-point injection - two injector outputs, each driving three or four high impedance injectors
• MAF sensor
• Narrowband O2 sensor
