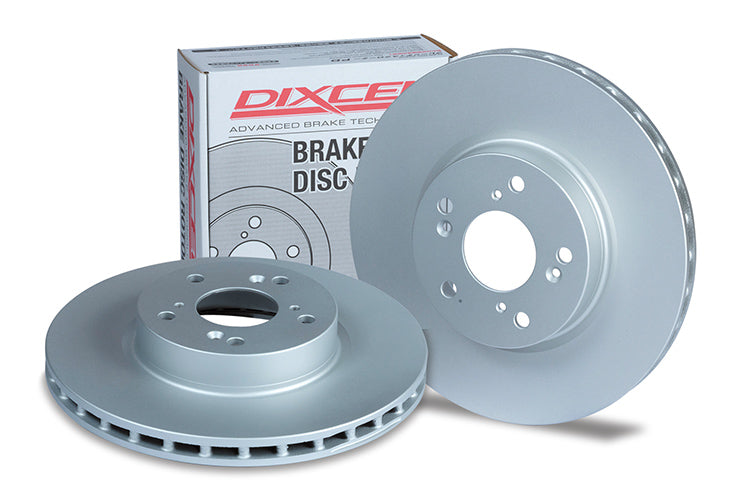

DIXCEL Front Brake Rotors - Subaru WRX (VB) / WRX Sportwagon (VN) / Outback (BT) / Forester (SK) - 316x28mm

Upgrade your Subaru's front braking performance with DIXCEL brake rotors, engineered in Japan and developed through decades of OEM supply and motorsport experience. DIXCEL rotors are designed to deliver consistent braking performance, stable pedal feel, and reliable control for daily driving through to more spirited use.

This listing covers the DIXCEL brake rotor types shown for the latest generation of Subaru vehicles sharing the same 316x28mm front brake fitment, including the new WRX (VB) sedan and WRX Sportwagon (VN) 2022 onwards non-Brembo variants with the 2.4L FA24E turbocharged engine, the Outback (BT) 2022 onwards with the AWD XT turbocharged engine, the Forester (SK) 2018-2025 with the 2.5L FB25C engine, and the Forester Hybrid (SK) 2019-2025 with the 2.0L FB20W hybrid powertrain. All rotors for this application are 316x28mm vented. Multiple rotor types are available, ranging from street-focused replacements to higher-performance applications. Use the comparison chart on this product page to select the rotor type best suited to your driving style and vehicle configuration.

Rotor Specifications

• Outer Diameter: 316mm
• Thickness: 28mm
• Height: 48.2mm
• Hole Pattern: 5+2 (5-stud with 2 location holes)
• Centre Bore: 58mm
• PCD: 114.3mm
• Type: Vented

Important Fitment Notes

• This rotor fits the standard front caliper / 316x28mm setup. Vehicles fitted with the upgraded Brembo hardware (e.g. WRX VB Club Spec, tS Spec B, or aftermarket 6-piston Brembo kits) are NOT covered by this listing and require a different rotor.
• Confirm your vehicle's brake configuration before ordering.

Vehi
